164 Compact Range

LED technology minimises applications more and more so that connecting technology has to be installed in ever smaller spaces. These small Adels-Contact building installation connectors for installations according to EN 61535 is only half the size of the “big brother” 166G and thus ideally suited for applications with limited space. With its tall variant without strain relief the small building installation connectors 164G are an optimum solution for the installation in luminaires and appliances.

164 Compact Range

There are 15 products.

Showing 1-12 of 15 item(s)

Active filters

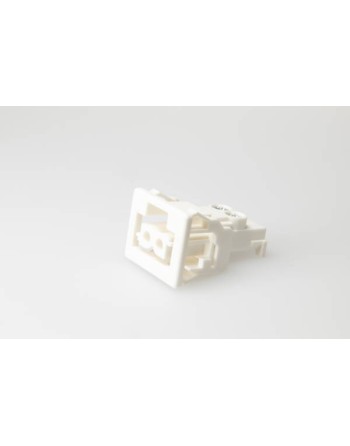

164 2 pole panel mounts

Panel mount, 2 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm

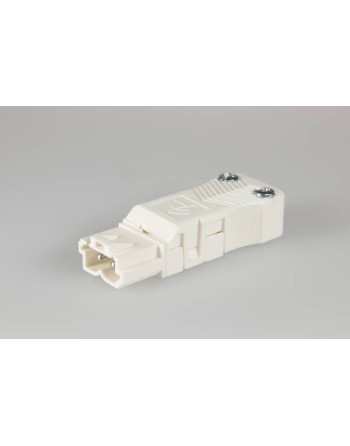

164 2 pole flat

Plug & Socket, 2 Pole

coding: 1 (mains)cable diameter min.: 5.0 mmcable diameter max.: 8.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

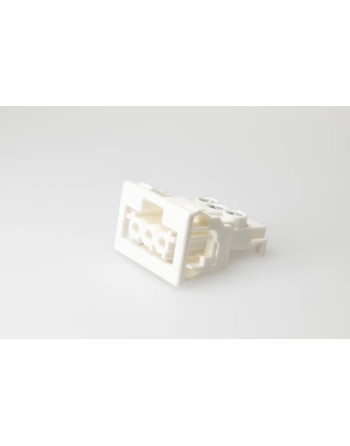

164 3 pole panel mounts

Panel mount, 3 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm

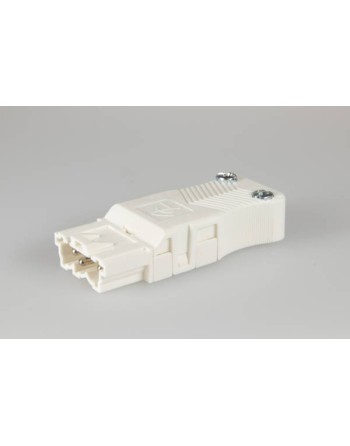

164 3 pole flat

Plug & Socket, 3 Pole

coding: 1 (mains)cable diameter min.: 5.4 mmcable diameter max.: 10.0 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

164 4 pole panel mounts

Panel Mount, 4 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm

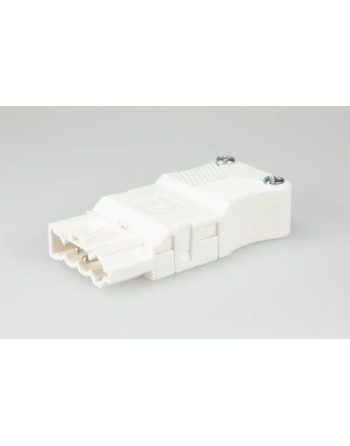

164 4 pole flat

Plug & Socket, 4 Pole

coding: 1 (mains)cable diameter min.: 6.5 mmcable diameter max.: 11.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw

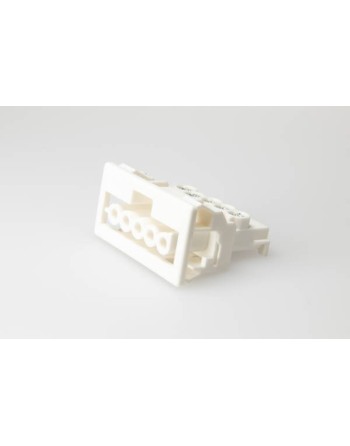

164 5 pole panel mounts

Panel mount, 5 pole

coding: 1 (mains)voltage rating: 250 Vcurrent rating: 16 A

cross-section rating: 2.5 mm²wall thickness min.: 0.5 mmwall thickness max.: 1.2 mm

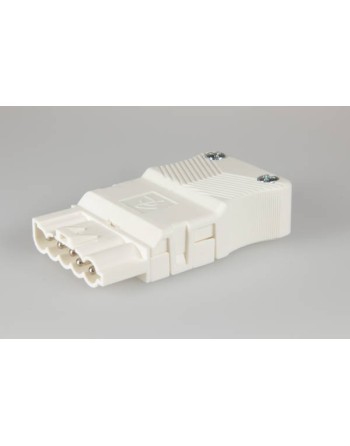

164 5 pole flat

Plug & Socket, 5 Pole

coding: 1 (mains)cable diameter min.: 6.5 mmcable diameter max.: 11.8 mm

voltage rating: 240/400 Vcurrent rating: 16 Across-section rating: 2.5 mm²connection type: screw
