The Metway DALI gateway provides an interface between DALI lighting products and our addressable control system. The module acts as a fully functional DALI addressable product with 64 individually programmable addresses. Each address can be a DALI luminaire, emergency inverter, PIR sensor, controlled relay or scene set plate.

The DALI64 is DIN rail mounted and enclosed in a steel powder coated enclosure wired to industry standard terminals.

Twin DALI64 units (i.e with 128 addresses) is also available.

A removeable memory module facilitates fast configuration of a replacement gateway should that be needed. In other words, should an gateway need to be replaced for any reason, no reprogramming is necessary, simply remove the memory module and reinsert it into the new controller.

Our Scene set control plates are used with our plug in and addressable control modules to permit the control of different lighting groups at different levels. From the plate you can call Scenes 1-4, Raise, Lower and Off. The Off button can also be programmed to a scene value. You press and hold buttons 1-4 to call scene 5-8.

Functions are identical on the Architrave Plate except that there are 2 fewer buttons. Control plates have blue LED back lighting for location and scene identification, and scenes are programmed via hand-held programmer, wirelessly via Bluetooth from a PC, or by using the buttons (eliminating the need for specialist equipment).

Connection to the system is by 4-core cable with a push on male plug to the scene set plate and a RJ12 connector to the LCM.

- 1 input / 2 outputs

- T shaped

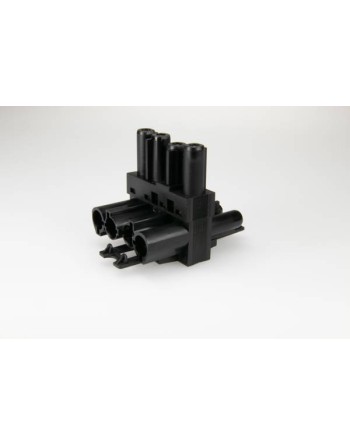

- 4 pole

Coding:

- 1 (mains)

Voltage rating:

- 250 V

Current rating:

- 20 A

- 1 input / 2 outputs.

- T shaped.

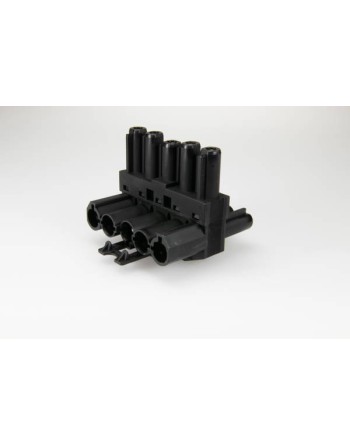

5 pole coding:

- 1 (mains).

Voltage rating:

- 250 V.

Current rating:

- 20 A.

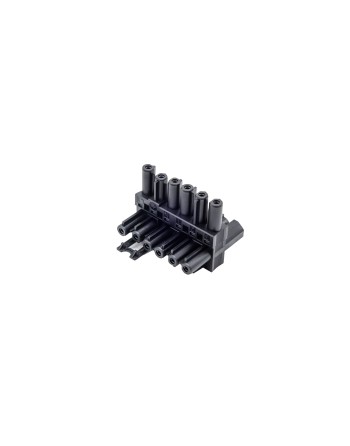

The moulded tee distribution unit provides a means of branching off the 6-pole 166G (F) system.

- 1x Input terminal (plug).

- 2 x Output terminal (socket).

The moulded tee comes complete with interlocking latching to lock 1x input & 1x output terminal.

Latching of the second output (luminaire connection) is made during installation either by plug or panel mount connector with a locking slide.

When making installations to VDE 0628, connecting elements have to be interlocked.

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires.

The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires. The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires. The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires. The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires. The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).

The 166G (Flat) range of connectors is ideal for applications where space is minimal, due to their low profile. Together with the options of panel mount connectors & moulded tee pieces, these assemblies provide simple connectivity between luminaires. The 166G(F) range of connectors is designed for main connection according to EN 61 984 (connected and disconnected under load) and used in installation systems when using the additional locking slides (VDE 0628).

The Metway "Tee" module is a key component part in the system allowing for pluggable connectivity between components. Utilising the 'G' type range of connectors and is available in two formats, fixed or remote versions, making any component quickly and easily adaptable to the Metway Wiring System.

The 'G' type range of connectors are designed for mains connection according to EN 61 984 ( connecting and disconnecting under load) and used in installations systems when using the latching covers or locking slides ( VDE 0628 ).
