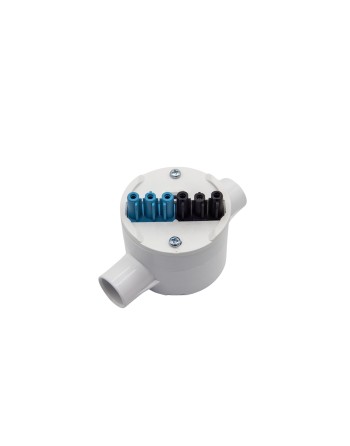

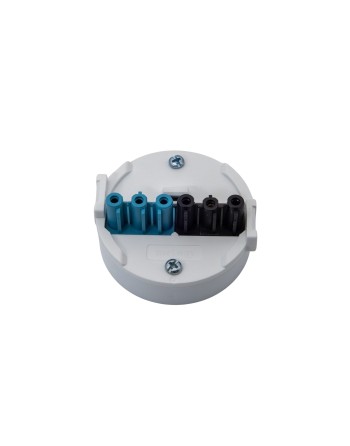

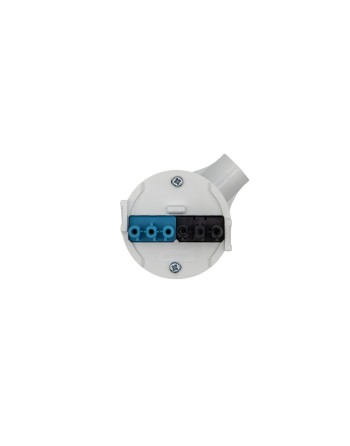

6 Pole BESA Socket Outlet

The Metway 6 pole Besa socket outlet is designed to fit standard 'G' type industry preferred connectors.

This fits straight onto standard round U.K plastic or metal besa/conduit boxes.

Typical applications for this type of connector would be, any installation that has fire regulations insisting on mechanical containment of cabling with the building fabric (e.g where the use of conduit and conduit boxes is required).

The easy fit and connect Besa box is supplied with fixing screw. It offers an easy loop in and out facilitated by double stacked terminal design on mounting plate connectors.

Moulded in V0 grade plastic and rated at 16A, 230V AC +/- 10%, 50Hz with a terminal capacity of 2.5mm², this product is compliant with BS 733:2010+A1:2014 and the connectors to BS61535.

Approvals

Request STP/BIM File

- BESA6KITPB 6 pole white Besa socket outlet black/blue.

- BESA6KITBG 6 pole white Besa socket outlet black/grey.

- Easy to fit and connect besa box electrical 'G' Type mains socket outlet, supplied c/w fixing screws.

- All versions fit straight onto standard round U.K besa/conduit boxes, plastic or metal.

- Designed to fit standard 'G' type industry preferred connectors in a 6 pole version.

- Easy loop in and out facillitated by double stacked terminal design on mounting plate connectors.

- Latching plug feature to ensure and maintain positive connection.

- 6 pole version has black or white mating plugs available.

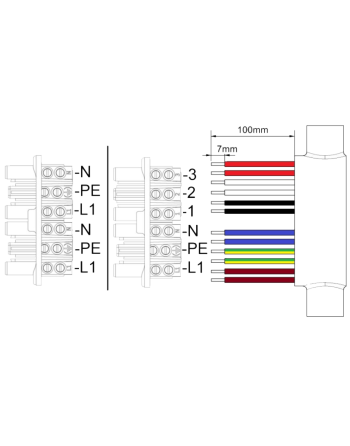

- 6 pole version comes with extension ring to accommodate up to twelve 1.5mm single conductors, 6 in/ 6 out.

- Designed to fit standard 'G' type industry preferred connectors in a 6 pole version.

- Easy loop in and out facillitated by double stacked terminal design on mounting plate connectors.

- Latching plug feature to ensure and maintain positive connection.

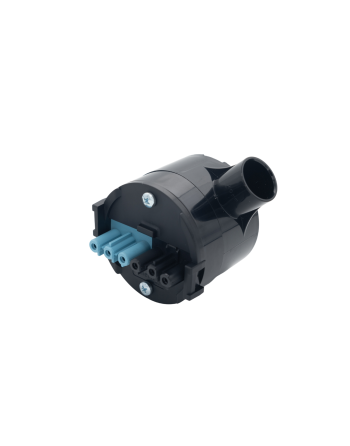

NOW ALSO AVAILABLE IN BLACK

- BESA6KITPBB 6 pole Besa socket outlet black/blue.

Reference

Data sheet

Connector Rating: 16 amps
Latching: Centre Latching
Material: UL 94 V0 - Moulded in V0 grade plastic
Supply Terminal Capacity: 2.5mm²
Voltage: 230VAC +/- 10%, 50Hz
Approvals: BS 5733:2010+A1:2014. (General requirements for electrical accessories)

Specific References

Download

6 Pole Besa Socket Datasheet

Download (1.84MB)

Besa Outlet DoC

Download (144.26KB)
