3 Pole Besa Latching Leads

Our 3 pole Besa latching leads, are the mating part to our 3 pole Besa socket outlet. They are supplied with a 3-pole centre latching plug, to a free end using 1.00mm² LS0H cable.

This can be supplied in lengths as per your requirements. These are supplied with a black industry standard, connector coding. Alternatively there is an option for white connectors.



Approvals



Request STP/BIM File

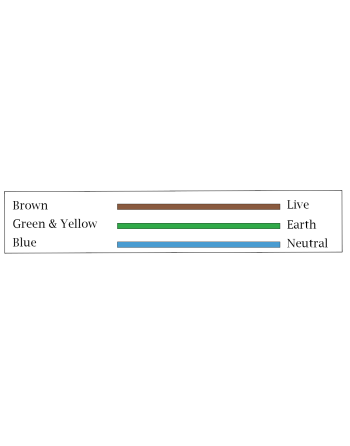

3 CORE LEADS (Live, Earth and Neutral)

BES333 - 3 metres.

BES335 - 5 metres.

BES337 - 7 metres.

We can provide leads in various lengths and conductor sizes.

Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).

We can also offer ultrasonic welded leads.

Please contact our sales team for any requests.

Data sheet

Cable
1.00mm LS0H white as standard. Black cable can be supplied as an alternative.
Prepared
Outer sheath stripped 70mm Inner cores Stripped and ferruled
Connector Rating
20 amps
Latching
Centre Latching
Cable Type
LS0H ECA Fire Class DCA/CCA Fire Class available on request
Compatibility
3 Pole Besa Socket Outlet
IP Rating
IP20
Material
UL66
Supply Terminal Capacity
2.5mm²

Specific References

Download

3 Pole Besa Leads Datasheet

Download (569.78KB)

Besa Lead DoC

Download (144.97KB)
