4 Pole Besa Latching Leads

Our 4 pole Besa latching leads, are the mating part to our 4 pole Besa socket outlet. They are supplied with a 4-pole centre latching plug, to a free end using 1.00mm² LS0H cable. This can be supplied in lengths as per your requirements.

These are supplied with a black industry standard, connector coding. Alternatively there is an option for white connectors.

Approvals

Request STP/BIM File

3 CORE LEADS (Live, Earth and Neutral)

BES433 - 3 metres.

BES435 - 5 metres.

BES437 - 7 metres.

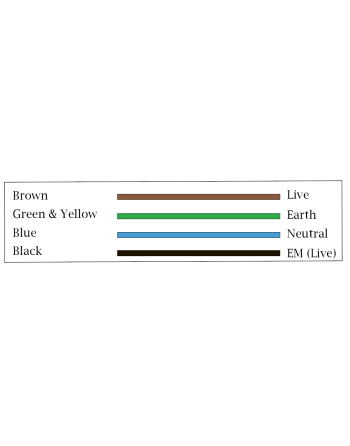

4 CORE LEADS (Live, Earth, Neutral and EM Live)

BES443 - 3 metres.

BES445 - 5 metres.

BES447 - 7 metres.

We can provide leads in various lengths and conductor sizes.

Leads can also be provided wired to maintained live, and with optional red covers (Add E on end of part code).

We can also offer ultrasonic welded leads.

Please contact our sales team for any requests.

Reference

Data sheet

Cable: 1.00mm LS0H white as standard. Black cable can be supplied as an alternative.
Prepared: Outer sheath stripped 70mm Inner cores Stripped and ferruled
Connector Rating: 20 amps
Latching: Centre Latching
Cable Type: LS0H ECA Fire Class DCA/CCA Fire Class available on request
Compatibility: 4 Pole Besa Socket Outlet
IP Rating: IP20
Material: UL66
Supply Terminal Capacity: 2.5mm²

Specific References

Download

4 Pole Besa Leads Datasheet

Download (594.76KB)

Besa Lead DoC

Download (144.97KB)
