6 Pole Besa Latching Leads

Our 6 pole Besa latching leads, are the mating part to our 6 pole Besa socket outlet. They are supplied with a 6-pole centre latching plug, to a free end using 1.00mm² LS0H cable. This can be supplied in lengths as per your requirements.

These are supplied with a black/blue industry standard, connector coding. There is an option for white or red covers.

Approvals

Request STP/BIM File

3 CORE LEADS (Live, Earth and Neutral)

BES633 - 3 metres.

BES635 - 5 metres.

BES637 - 7 metres.

4 CORE LEADS (Live, Earth, Neutral and EM Live)

BES643 - 3 metres.

BES645 - 5 metres.

BES647 - 7 metres.

5 CORE LEADS (Live, Earth, Neutral, Dim 1 and Dim 2)

BES653 - 3 metres.

BES655 - 5 metres.

BES667 - 7 metres.

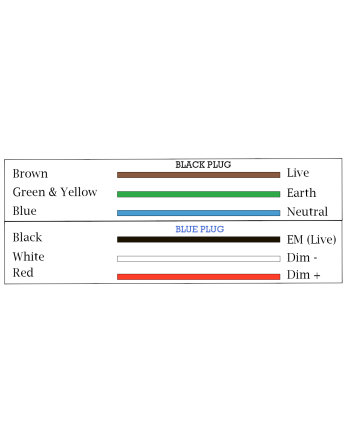

6 CORE LEADS (Live, Earth, Neutral, EM Live, Dim 1 and 2)

BES663 - 3 metres.

BES665 - 5 metres.

BES667 - 7 metres.

We can provide leads in various lengths and conductor sizes.

Leads can also be provided wired to maintained live, and with optional black or red covers (Add E on end of part code).

We can also offer ultrasonic welded leads.

Please contact our sales team for any requests.

Reference

Data sheet

Cable: 1.00mm LS0H white as standard. Black cable can be supplied as an alternative.
Prepared: Outer sheath stripped 70mm Inner cores Stripped and ferruled
Connector Rating: 20 amps
Latching: Centre Latching
Cable Type: LS0H ECA Fire Class DCA/CCA Fire Class available on request
Compatibility: 6 Pole Besa Socket Outlet
IP Rating: IP20
Material: UL66
Supply Terminal Capacity: 2.5mm²

Specific References

Download

6 Pole Besa Lead Datasheet

Download (603.68KB)

Besa Lead DoC

Download (144.97KB)

Array
