1500 57A terminal blocks - heavy duty

Series 1500 57A terminal blocks - heavy duty



Approvals



Request STP/BIM File

Series 1500 terminal blocks are particularly suitable for use in water heaters, shower units and all heavy duty applications.

Raised base versions are unnecessary as they meet the minimum 8mm creepage and clearance distance.

Supplied with or without wire protectors.

Captive screws are fitted as standard.

Complies to VDE 0711(EN 60 598-1) & VDE 0613 (EN 60 998) if used in equipment rated up to 32 amp.

Glow wire options available for installations in accordance with EN 60 335-1 upon request.

150012

1500HDS12

Data sheet

Material
polyamide 6 V2
Voltage
500V
Current Rating
57A
Operating Temperature
85°C
Core Cross-Section min
0.5mm
Core Cross-Section max
6mm
Approbation ENEC
yes
Approbation UL
yes
Approbation CSA
yes
Wire stripping length
8.0-8.5mm

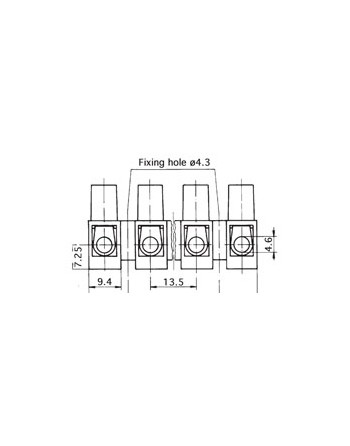

Pitch
13.5
Number of Poles
2-12

Specific References

Download

1500 data sheet

Download (312.98KB)
