982W Barrier Strip Connector
Barrier Strip Connector
Screw connection, vertical wire entry
Approvals
Request STP/BIM File

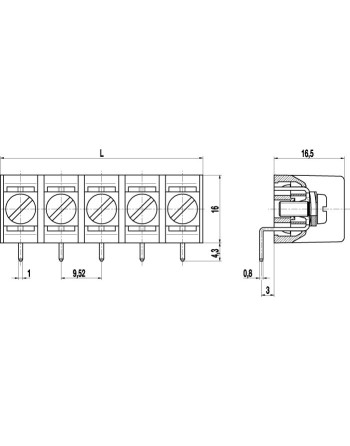

The PCB screw connector 982-W in 9.52 mm pitch is available with 2- to 26-pole design and can be mounted side-by-side in the nominal pitch. This version is equipped with one solder pin per pole. The conductor terminal, located vertical to the PCB, is of head contact design, whereby the screws and square washers are movably connected. For easier connection, the non-rotably mounted square washers are automatically lifted when the screw is loosened.
Options
Marking: consecutive numbering, lettering or special printing available. Please provide sketch.
Insulating covers: enquire for details.
Data sheet
- Voltage
- 320V
- Mouldings
- PA, grey, V-0
- Current Rating
- 15A
- Inserts
- brass, tinned
- Temp. limits
- max short term: 140º C continuous: RTI 105º C
- Conductor size
- 2 x 2.5mm2
- Wire stripping length
- 8.5mm
- Screws
- M3,5; zinc plated steel, blue passivated
- Pin spacing
- 3/8” (9.52mm)
- Tracking distance
- CTI over 600
- Pressure plates
- Tin plated brass
- Recommended hole dia. in p.c. board:
- 1.6mm
