302STP/STS 6A Plugs and Sockets

Series 302STP/STS 6A Plugs and Sockets



Approvals



Request STP/BIM File

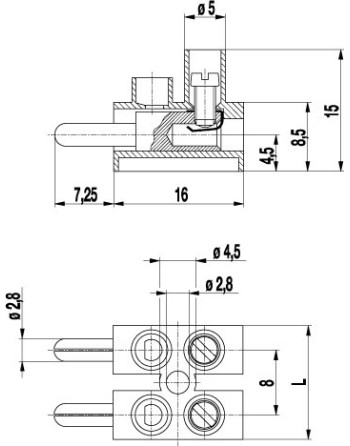

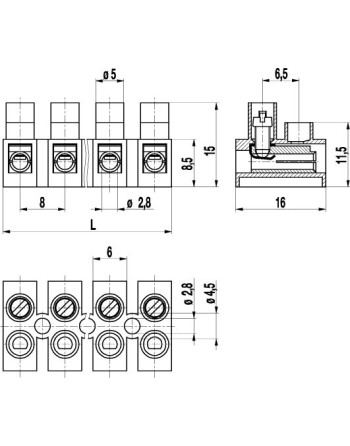

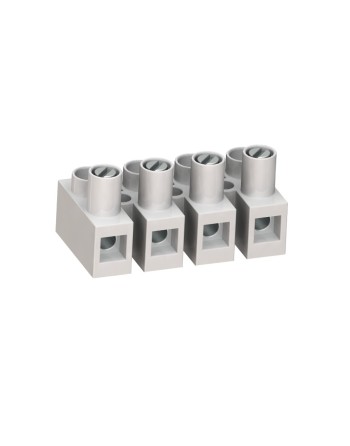

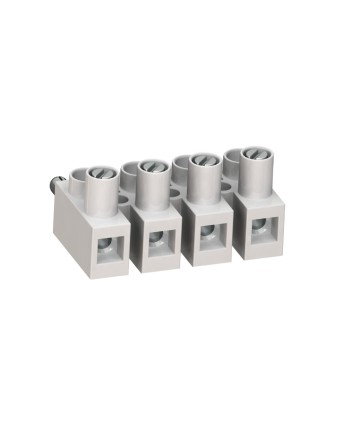

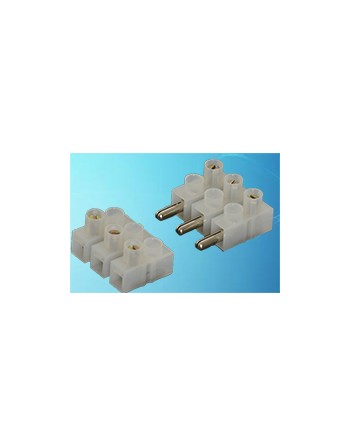

The plug-in terminal strip 302-STB is available in 8 mm pitch with 1 to 12 poles. It has one screw connection per pole and one plug connection for a terminal strip with pins. The slotted pins and slotted sockets of plug-in terminal strip 302-STS create appropriate contact pressure. Due to the small 8 mm pitch, this version is well suited for applications where space is limited. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. These terminals strips can be screw-mounted on a substrate.

302STP12

302STS12

302STPDS12

302STSDS12

Data sheet

Material
polyamide 6 V2
Voltage
450v
Current Rating
6A
Core Cross-Section min
0.5mm
Core Cross-Section max
4mm
Approbation UL
yes
Approbation CSA
yes
Pitch
8mm
Number of Poles
2-12 pole

Specific References

Download

302 stp/sts

Download (396.81KB)
