302SV/FB 6A Plugs and Sockets

Series 302SV/FB 6A Plugs and Sockets



Approvals



Request STP/BIM File

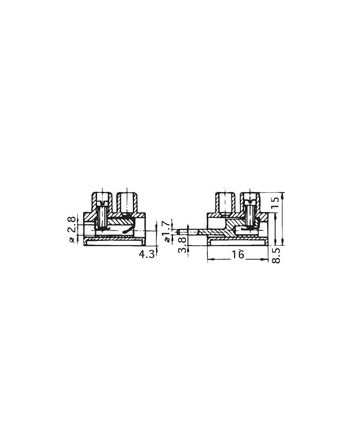

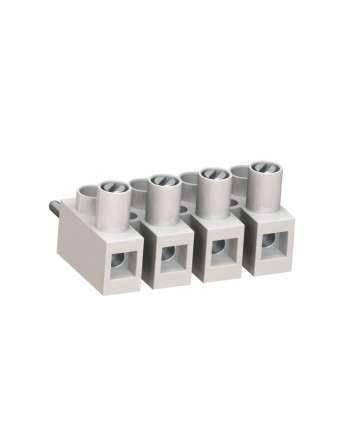

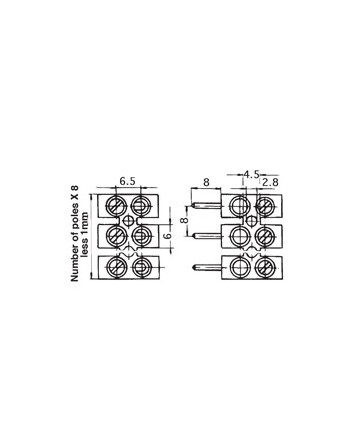

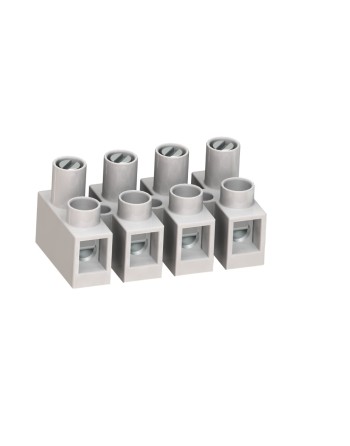

The plug-in terminal strip 302-SV is available in 8 mm pitch with 1 to 12 poles. It has one screw connection per pole and one vertical pin for the connection to the socket of the female counterpart. In combination with the plug-in terminal strip 302-FB, this connector provides the contact pressure via a stainless steel spring which ensures good electrical contact. Plug-in direction is parallel to each other. In combination with the plug-in terminal strip 302-FBG, this connector can be used especially on a printed circuit board. Plug-in terminal strips 302-SV or 302-SVG create a plug connection where the connection leads are located in a 90° angle to each other. That way, challenges of limited mounting space can be resolved. Due to the small 8 mm pitch, this version is well suited for applications where space is limited. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. These terminals strips can be screw-mounted on a substrate.

302SV12

302FB12

302SVDS12

302FBDS12

Data sheet

Material
polyamide 6 V2
Voltage
450v
Current Rating
6A
Core Cross-Section min
0.5mm
Core Cross-Section max
4mm
Approbation UL
yes
Approbation CSA
yes
Pitch
8mm
Number of Poles
2-12 pole

Specific References

Download

302sv fb

Download (392.11KB)
