983S Barrier Strip Connector
Barrier Strip Connector
Screw connection, 1 solder pin per pole
Approvals
Request STP/BIM File

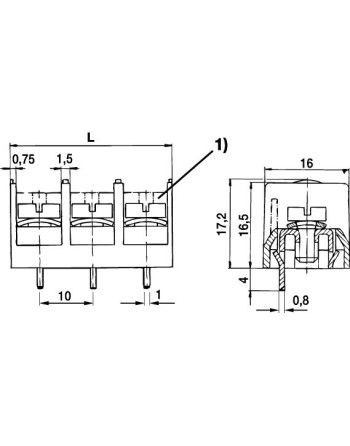

The PCB connector 983-S with a pitch of 10 mm features in spite of its small dimensions, large clearance and creepage distances. This version is equipped with one solder pin per pole and is available in 2- to 26-pole design. The conductor terminal is of head contact design, whereby the screws and square washers are movably connected. For easier connection, the non-rotably mounted square washers are automatically lifted when the screw is loosened. The connector can be mounted side-by-side in the nominal pitch. Variant “-ZS” features an additional back wall.
Options
Marking: consecutive numbering, lettering or special printing available. Please provide sketch.
Insulating covers: enquire for details.
Back plate: series 983 is available with an insulating back plate. Please enquire for details.
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24A
- Voltage Rating
- 500V
- Inserts
- brass, tinned
- Screw tightening torque
- 1.13 Nm
- Temp. limits
- max short term: 140º C continuous: RTI 105º C
- Conductor size
- 2 x 2.5mm2
- Wire stripping length
- 8.5 mm ± 0.5 mm
- Screws
- M4; zinc plated steel, blue passivated
- Pin spacing
- 10mm
- Tracking distance
- CTI Over 600
- Pressure plates
- Tin plated brass
- Recommended hole dia. in p.c. board:
- 1.6mm
