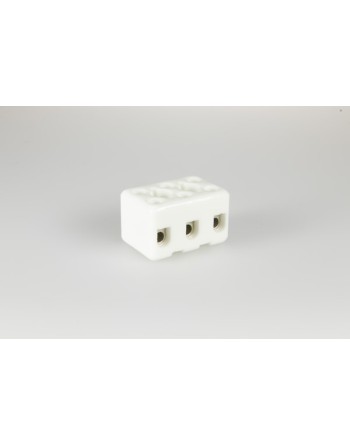

Series 157 10A porcelain connectors
Approvals
Request STP/BIM File
Series 157 10A porcelain connectors are suitable for all applications where thermoplastic materials would not have sufficient heat resistance capabilities.
The connectors shown are glazed to prevent moisture absorption (base is unglazed) and are available in 10 amp rating only.
Available in 2 or 3 pole and with or without wire protectors (DS)
Part codes:
1572
1572DS
1573
1573DS
Data sheet
- Material
- porecelain
- Current Rating
- 24A
- Voltage Rating
- 450V
- Core Cross-Section min
- 0.5mm
- Core Cross-Section max
- 6mm
- max. Ambient Temperature Operation
- 350°C
- Wire stripping length
- 7mm
- Number of Poles
- 2 & 3 pole
