983W Barrier Strip Connector

PCB Connectors

Screw connection, vertical wire entry



Approvals



Request STP/BIM File

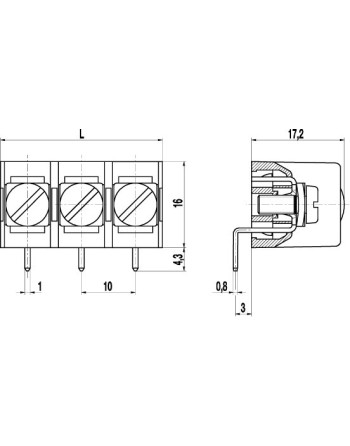

The PCB screw connector 983-W in 10 mm pitch is available with 2- to 26-pole design and can be mounted side-by-side in the nominal pitch. This version is equipped with one solder pin per pole. The conductor terminal, located vertical to the PCB, is of head contact design, whereby the screws and square washers are movably connected. For easier connection, the non-rotary mounted square washers are automatically lifted when the screw is loosened.

Options

Marking: consecutive numbering, lettering or special printing available. Please provide sketch.

Insulating covers: enquire for details.

Back plate: series 983 is available with an insulating back plate. Please enquire for details.

Data sheet

Mouldings
PA, grey, V-0
Current Rating
15A
Voltage Rating
500V
Inserts
brass, tinned
Screw tightening torque
1.13 Nm
Temp. limits
max short term: 140º C continuous: RTI 105º C
Conductor size
2 x 2.5mm2
Wire stripping length
8.5 mm ± 0.5 mm
Screws
M4; zinc plated steel, blue passivated
Pin spacing
10mm
Tracking distance
CTI Over 600
Pressure plates
Tin plated brass
Recommended hole dia. in p.c. board:
1.6mm

Specific References

Download

983W data sheet

Download (185.89KB)
