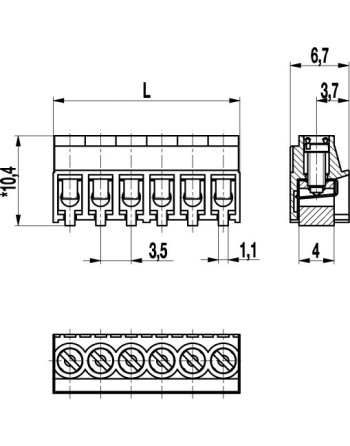

930-D-SMD (-DS) PCB Connector for SMD Screw connection

930-D-SMD (-DS)

PCB Connector for SMD

Screw connection, self leveling terminal bodies



Approvals



Request STP/BIM File

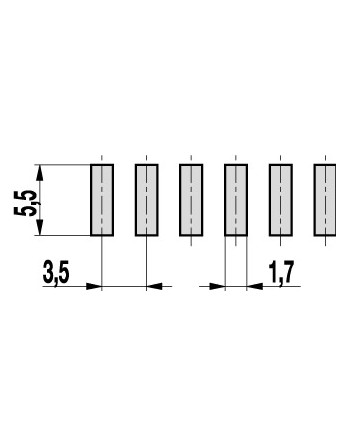

The PCB connector 930-D-SMD with a pitch of 3,5 mm for genuine surface mount technology is specifically designed for automated processing assembly and is available in 2 to 12 pole design. In the Tape-on-Reel packaging, it is equipped with a glued pick disc that can be easily removed after the soldering process. Its floating terminal bodies compensate irregularities (non planarity and bumps) on the printed circuit board. The same feature eliminates CTE (coefficient of thermal expansion) mismatch with the PCB and thus promotes excellent in field reliability and the successful passing of thermal cycling testing.

930DSMD**

930DDSMDDS**

Data sheet

Mouldings
PA HT,Black V0
Current Rating
13.5A
Core Cross-Section min
0.75mm
Core Cross-Section max
1.5mm
Pitch
3.5mm
Number of Poles
2-12
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

930 smd datasheet

Download (485.4KB)
