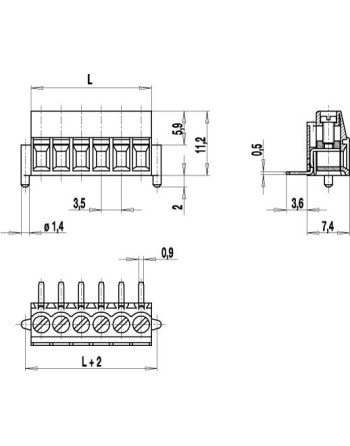

The 2 to 12 pole connectors with a pitch of 3,5 mm have a screw connection with elevator clamping system and are equipped with M2 captive screws. Just as the 210-A-SMD, the 210-A-126-SMD represents a space saving and compact connector with a high connecting capacity. The generous clamping range is of 1,7 mm x 2,6 mm. A distinguishing characteristic to the 210-A-SMD, however, is the clearly increased adhesion force on the PCB. Soldering cylinders on either side of the housing (floating anchors) are movable in vertical direction and thereby they obtain 100% coplanarity between solder pins and soldering cylinders. They are transferred more to the front in comparison to the connector centre in order to keep the retaining strength, where the wires are connected. Thus, the force, acting on the solder pins, is reduced in a very important way. Packed in magazines or equipped with Pick Discs in Tape-on-Reel, this genuine SMD terminal is suitable for the automatic assembly.

210A126SMD**
