950-D-SMD-DS PCB Connector for SMD Screw connection

950-D-SMD-DS

PCB Connector for SMD

Screw connection



Approvals



Request STP/BIM File

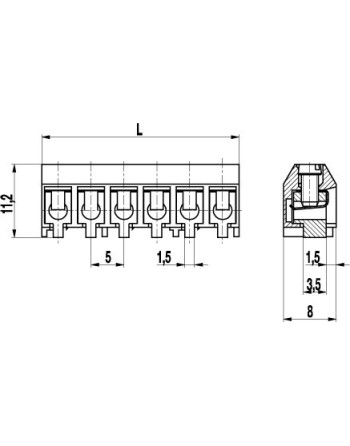

The reflow solderable PCB connector 950-D-SMD-DS for true surface mounting with a pitch of 5 mm is available in 2 to 12 pole design. The geometry of the terminal body creates enough space for the solder paste and it also enables a good heat circulation for flawless soldering and an optical solder joint inspection. The housing is made of high temperature material. Its design ensures a good hot-air circulation during the reflow soldering process in a convection oven. The connection side of this product should be positioned in the direction of passage.

950DSMDDS**

950DSMDDS**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
17.5A
Core Cross-Section max
1.5mm
Pitch
5mm
Number of Poles
2-12
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

850 d smd datasheet

Download (245.04KB)
