140-A-SMD PCB Connector for SMD Screw connection, with mounting peg

140-A-SMD

PCB Connector for SMD

Screw connection, with mounting peg



Approvals



Request STP/BIM File

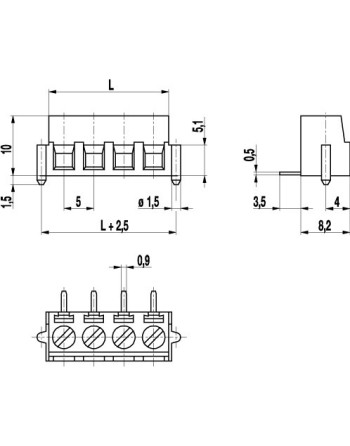

The 2 to 8 pole terminal 140-A-SMD with a pitch of 5 mm has a screw connection with elevator clamping system and is equipped with M3 captive screws. The wire clamp and soldering tag are manufactured as a single unit and permanently engaged in the housing. The solder pins are exactly aligned parallel to the printed circuit board in order to create a coplanar connection after the reflow soldering process. The moulding is made of heat resistant thermoplastic material and equipped with plastic pegs on both sides to prevent twisting. This article is only available in bar magazines or in Tape-on-Reel. When delivered in Tape-on-Reel, this product is equipped with a Pick Discs that can be easily removed after the soldering process.

140ASMD**

140ASMD**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
12.5A
Core Cross-Section min
0.14mm
Core Cross-Section max
2.5mm
Pitch
5mm
Number of Poles
2-8
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References
