934 (DS) PCB Connector
2-24 Pole
Screw connection, 45° wire entry
Wire protectors (DS) available
Approvals
Request STP/BIM File

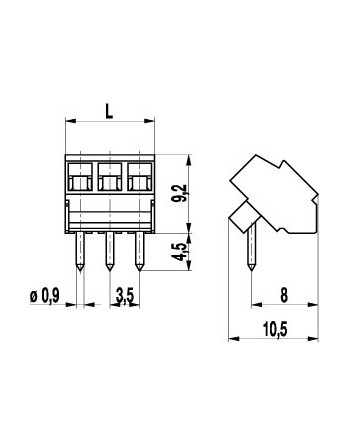

The PCB connector 934, inclined version with a pitch of 3,5 mm is available in 2- to 24-pole design. The wire entrance is in a 45° angle diagonal to the PC board. Therefore, this PCB connector is ideal for the assembly in the centre of PCBs. The design of this PCB connector allows space-saving arrangement of consecutive rows of terminals. It can be mounted side-by-side without pole loss, and is equipped with captive screws. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw.
Marking: consecutive numbering, lettering or special printing available. Upon request
934**DS
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 10A
- Voltage Rating
- 160V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.2 Nm
- Conductor size
- 1mm2
- Wire stripping length
- 5 mm ± 0.5 mm
- Screws
- M2; zinc plated steel, blue passivated
- Pin spacing
- 3.5mm
- Number of Poles
- 2-24
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.2 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) stainless steel
