950T (DS) Plug Connector
Low Profile Screw connection, dovetail version
Wire protectors (DS) available
Approvals
Request STP/BIM File

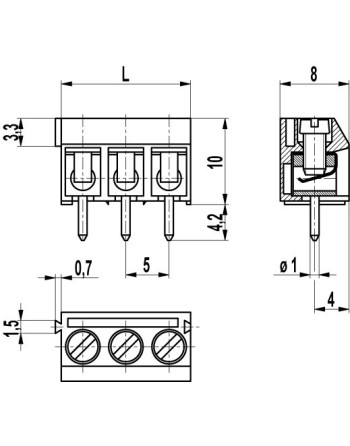

The PCB connector 950-T with a pitch of 5 mm is available in 2- and 3-pole design. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. The screws are secured against self-loosening.
950TDS02
950TDS03
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 17.5A
- Voltage Rating
- 300V
- Screw tightening torque
- 0.4 Nm
- Conductor size
- 1.5mm2
- Wire stripping length
- 6 mm ± 0.5 mm
- Screws
- M2.6; zinc plated steel, blue passivated
- Pin spacing
- 5mm
- Tracking distance
- CTI Over 100
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
