140-A-126-SMD PCB Connector for SMD Screw connection, with anchors

140-A-126-SMD

PCB Connector for SMD

Screw connection, with anchors



Approvals



Request STP/BIM File

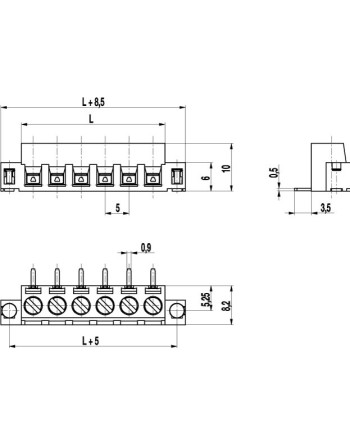

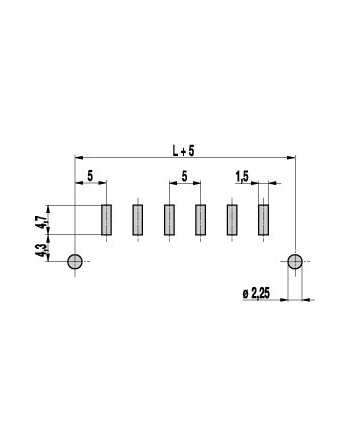

The 2 to 8 pole terminal 140-A-126-SMD with a pitch of 5 mm has a screw connection with elevator clamping system and is equipped with M3 captive screws. The wire clamp and soldering tag are manufactured as a single unit and permanently engaged in the casing. Soldering cylinders on either side of the housingare movable in vertical direction (floating anchors), and thereby they obtain 100% coplanarity between solder pins and soldering cylinders. They are transferred more to the front in comparison to the connector centre in order to keep the retaining strength, where the wires are connected. Thus, the force, acting on the solder pins, is reduced in a very important way. This article is only available in bar magazines or in Tape-on-Reel. When delivered in Tape-on-Reel, this product is equipped with a Pick Discs that can be easily removed after the soldering process.

140A126SMD**

140A126SMD**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
16A
Core Cross-Section min
0.14mm
Core Cross-Section max
1.5mm
Pitch
5mm
Number of Poles
2-8
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

140 a 126 smd datasheet

Download (682.21KB)
