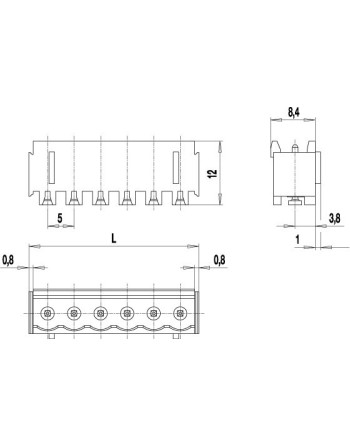

120-M-221-SMD Header Vertical plug-in, with side walls

120-M-221-SMD

Header

Vertical plug-in, with side walls



Approvals



Request STP/BIM File

The PCB terminals for surface mounting comprise several types for reflow-soldering processes. Housings out of temperature resistant plastic material and solder pins in round shape with soldering foot form the pin strips of the series of 120-M-221-SMD. The pins are movable in vertical direction and this ensures plane positioning of the soldering feet on the soldering pads. Thus, 100% coplanarity is guaranteed. For the automatic assembling process, all pin strip versions are packed Tape-on-Reel and are equipped with high temperature resistant Pick Caps, which can comfortably be removed after the soldering process.

120M221SMD

120M221SMD**TR

Data sheet

Mouldings
PA HT,Black V0
Current Rating
12A

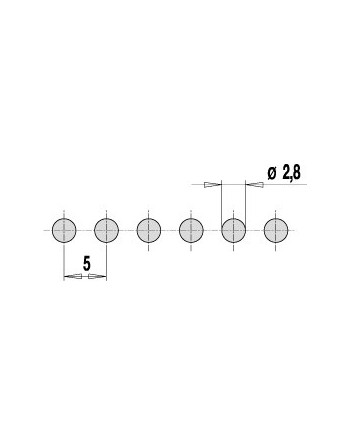

Pitch
5mm
Number of Poles
2-12
Soldering Process
Reflow solder
Temperature range
-40°C-120°C

Specific References

Download

120 m 221 datasheet

Download (586.53KB)
