971 (DS) PCB Connector
PCB connector
Screw connection, vertical wire entry
Wire protectors (DS) available
Approvals
Request STP/BIM File

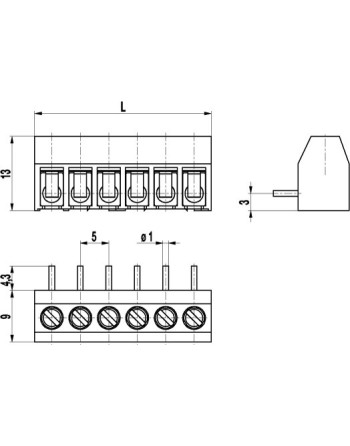

The PCB screw connector 971 with a pitch of 5 mm is available in 2- to 32-pole design and can be mounted side-by-side without pole loss. Compared to the smaller 951 series PCB connector, it has a larger clamping range and larger clearance and creepage distances. Wire protection in DS-design reliably prevents damage to stranded wires by the screw. The wire entrance is vertical to the PCB. The screws are secured against self-loosening. For the grid connection, these PCB connectors are equipped with a M3 thread.
Options
Marking: consecutive numbering, lettering or special printing available. Please provide sketch.
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24 A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.51 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, blue passivated
- Pin spacing
- 5mm
- Number of Poles
- 2-32
- Tracking distance
- 2 – 8 pole lengths CTI Over 600 9 – 32 pole lengths CTI Over 175
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
- orientation
- Horizontal
