970T (DS) PCB Connector
PCB connector
Screw connection, dovetail version
Wire protectors (DS) available
Approvals
Request STP/BIM File

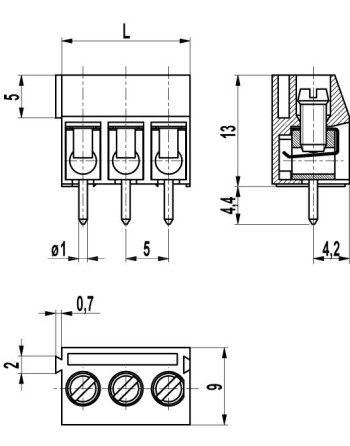

The PCB connector 970T with a pitch of 5 mm is available in 2- and 3-pole design. Compared to the smaller PCB connector 950T, it has a larger clamping range and larger clearance and creepage distances. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. The wire entrance is parallel to the PCB. The screws are secured against self-loosening. For the grid connection, these PCB connectors are equipped with a M3 thread.
970TDS02
970TDS03
Options
Marking: consecutive numbering, lettering or special printing available. Please provide sketch.
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24 A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.51 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, blue passivated
- Pin spacing
- 5mm
- Number of Poles
- 2+3
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
