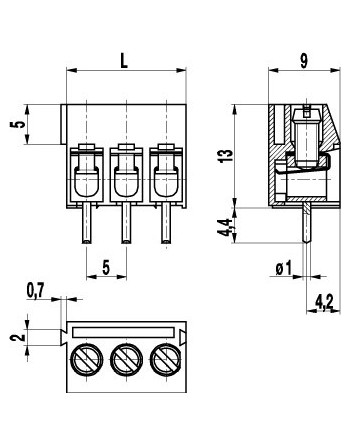

978T (DS) PCB Connector
PCB Connector
Screw connection, dovetail version, enlarged clamping area
Wire protectors (DS) available
Approvals
Request STP/BIM File
The PCB connector 978T with larger conductor space and a pitch of 5 mm is available in 2- and 3-pole design. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. The wire entrance is parallel to the PCB. The screws are secured against self-loosening. For the grid connection, these PCB connectors are equipped with a M3 thread.The PCB connector 978T with larger conductor space and a pitch of 5 mm is available in 2- and 3-pole design. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw. The wire entrance is parallel to the PCB. The screws are secured against self-loosening. For the grid connection, these PCB connectors are equipped with a M3 thread.
978TDS02
978TDS03
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 4mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, blue passivated
- Pin spacing
- 5mm
- Number of Poles
- 2+3
- Tracking distance
- 2 to 8 pole lengths: CTI Over 600 9 to 32 pole lengths: CTI Over 175
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- Tin plated tin bronze
