974T (DS) PCB Connector
Screw connection, 45° wire entry, dovetail version
Approvals
Request STP/BIM File

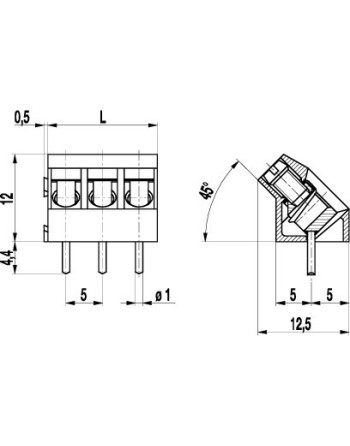

The PCB connector 974-T, inclined version with a pitch of 5 mm is available in 2 and 3 pole design. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. The wire entrance is in a 45° angle diagonal to the PC board. Therefore, this PCB connector is ideal for the assembly in the centre of PCBs. The design of this PCB connector allows space-saving arrangement of consecutive rows of terminals. Wire protection in DS-design reliably prevents damage to stranded wires by the screw.
974TDS02
974TDS03
Marking: consecutive numbering, lettering or special printing available. Please provide sketch.
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 20A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, clear passivated
- Pin spacing
- 5mm
- Number of Poles
- 2+3
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
