120-A-111 Plug Connector Screw connection
120-A-111
Plug Connector
Screw connection
Approvals
Request STP/BIM File

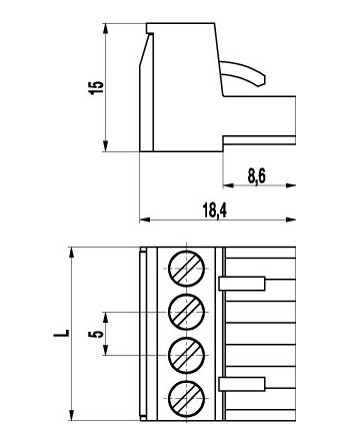

The plug connector 120-A-111, with a pitch of 5 mm, is available in 2- to 24-pole design. For each pole the plug connector has one trapezoidal coding slot in which the coding elements 120-K can be inserted. The wire entrance is parallel to the plug direction. The screws are captive.
120111**
Data sheet
- Mouldings
- PA Grey V0
- Current Rating
- 12A
- Pitch
- 5mm
- Number of Poles
- 2-24
