976T (DS) PCB Connector
Screw connection, 45° wire entry, dovetail version
Approvals
Request STP/BIM File

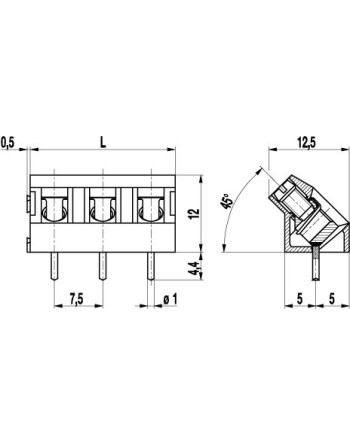

The PCB connector 976T, inclined version with a pitch of 7,5 mm is available with 2 and 3 poles. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. Due to their large clearance and creepage distances, these PCB connectors are particularly suitable for higher voltages. The wire entrance is in a 45° angle diagonal to the PC board. Therefore, this PCB connector is ideal for the assembly in the center of PCBs. The design of this PCB connector allows space-saving arrangement of consecutive rows of terminals. Wire protection in DS-design reliably prevents damage to stranded wires by the screw.
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
976TDS02
976TDS03
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, clear passivated
- Pin spacing
- 7.5mm
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
