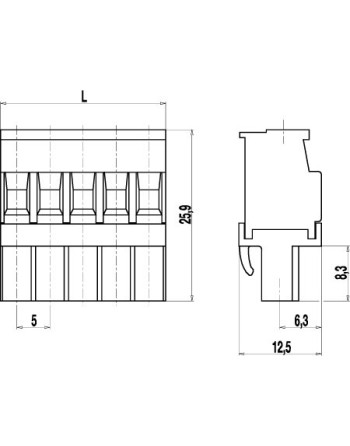

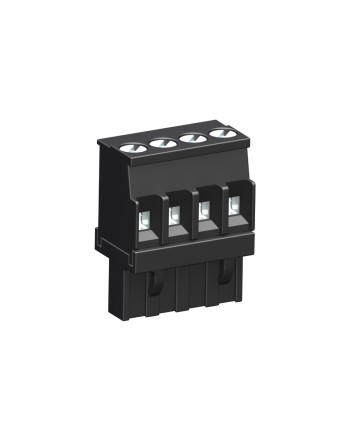

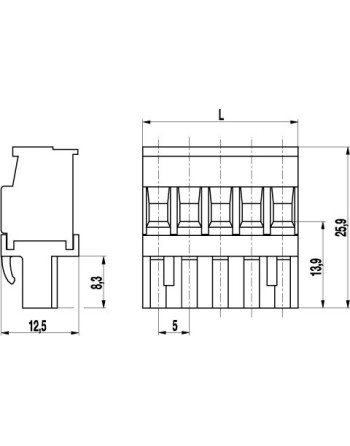

The plug connector 120-D-111, with a pitch of 5 mm, is available in 2- to 24-pole design and can be mounted side-by-side without pole loss. On version 120-D-111, the wire entrance is located opposite to the latching hook side; on version 120-D-121, it is located on the same side. Plugging the plug connector on pin strips of series 120 therefore results in inverted plug-in configurations. For each pole the plug connector has one trapezoidal coding slot in which the coding elements 120-K can be inserted. The wire entrance is vertical to the plug direction. The screws are captive.

120D111**

120D121**
