977T (DS) PCB Connector
Screw connection, with test holes, dovetail version
Approvals
Request STP/BIM File

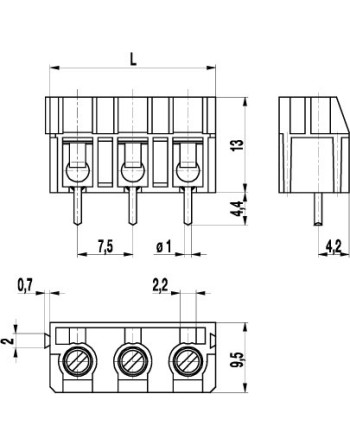

The PCB connector 977T with a pitch of 7,5 mm is available is available with 2 and 3 poles. Lateral latching elements on the housing allow to latch the PCB connector to longer terminal strips without pole loss. Due to their large clearance and creepage distances, these PCB connectors are particularly suitable for higher voltages. Wire protection in DS-design reliably prevents damage to stranded wires by the screw. The wire entrance is parallel to the PCB. The screws are captive. This PCB connector has test holes for ø 2,2 mm test plugs.
Options
Marking: consecutive numbering, lettering or special printing available. Upon requesT
977TDS02
977TDS03
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 2.5mm2
- Wire stripping length
- 7 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, blue passivated
- Pin spacing
- 7.5mm
- Number of Poles
- 2+3
- Tracking distance
- CTI Over 600
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
