900S 7.5 tab type PCB connector top entry
tab type PCB connector top entry
Approvals
Request STP/BIM File

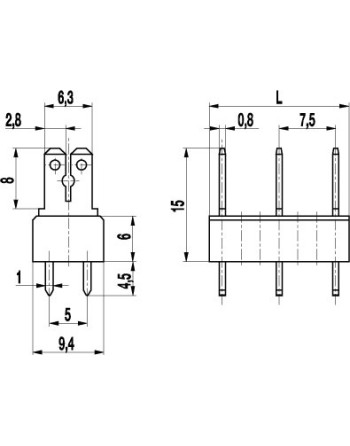

The tab connector 900-S-7,5 with double solder termination and a pitch of 7,5 mm is designed for 1x 2,8 mm or 1x 6,3 mm tab connector receptacles. Depending on the respective application, the tab connectors of series 900 allow to plug in bare, partially or fully insulated tab receptacles according to DIN 46247. Also non-insulated 2,8 mm or 6,3 mm tab receptacles can be plugged on these tab connectors. Insulation receptacles ISO-25 (see also ISO product data sheet) can be used to insulate 2,8 mm or 6,3 mm tab receptacles. Insulation sockets are available for 6,3 mm tab connectors with double-spring contacts (see also ISO-900 product data sheet).
900S 7.5 **
Data sheet
- Connector Rating
- 2.8*0.8mm tabs-6A / 6.3*0.8mm tabs-15A
- Material
- nylon 6.6, UL94 V0
- Voltage
- 5mm spacing 250v / 7.5mm spacing 500v / 10mm spacing 600v
- Mouldings
- red or grey
- Continuous Working Temp
- 105°C
- Short Time Temp
- 140°C
- Inserts
- brass tinned
- Conductor size
- 2.8*0.8mm-1.5mm2 / 6.3*0.8mm-2.5mm2
