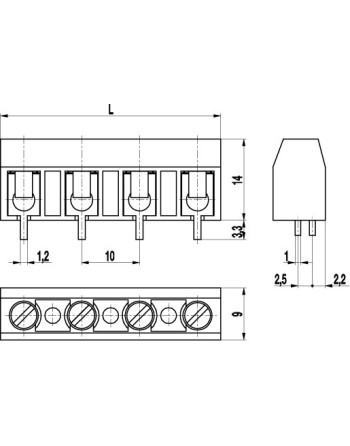

910Y (DS) PCB Tab Connector

Screw connection, 2 solder pins per pole

Approvals

Request STP/BIM File

The series 910Y PCB connector in 10 mm pitch with two solder pins per pole is designed for particularly large wires.

910Y**

910Y**DS

Reference

Mouldings: PA, grey, V-0
Current Rating: 25A
Voltage Rating: 300V
Inserts: brass, tinned
Screw tightening torque: 0.8 Nm
Conductor size: 4.0 mm2
Wire stripping length: 6.5 mm ± 0.5 mm
Screws: M3,5; zinc plated steel, blue passivated
Pin spacing: 10mm
Number of Poles: 2-12
Tracking distance: 2-8 pole lengths CTI Over 600 9-12 pole lengths CTI Over 175
Temperature range: -40°C up to 100°C
Wire protectors: (DS) Tin plated tin bronze
