979 (DS) PCB Connector
Screw connection, enlarged clamping area
Approvals
Request STP/BIM File

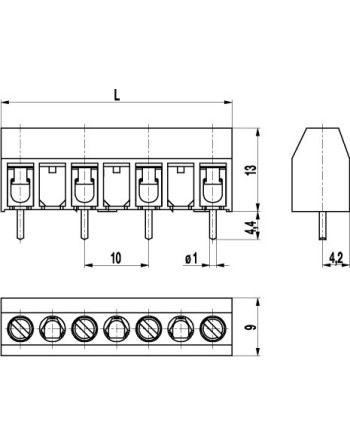

The PCB connector 979 with a pitch of 10 mm is available in 2- to 16-pole design. Compared to the PCB connector 972, it has a larger conductor space for wires up to 6 mm² and has also large clearance and creepage distances. Wire protection in DS-design reliably prevents damage to stranded wires by the screw. The screws are secured against self-loosening.
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
979**
979**DS
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 24A
- Voltage Rating
- 300V
- Inserts
- brass, tinned
- Screw tightening torque
- 0.5 Nm
- Conductor size
- 2.5 mm2
- Wire stripping length
- 6.5 mm ± 0.5 mm
- Screws
- M3; zinc plated steel, clear passivated
- Pin spacing
- 10.00 mm
- Number of Poles
- 2-16
- Tracking distance
- 2-4 pole lengths CTI Over 600 5-16 pole lengths CTI Over 400
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
