Panel Mount 5 pole

panel mount, 5 pole, coding: 1 (mains), wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm, voltage rating: 400 V, current rating: 20.0 A, cross-section rating: 2.5 mm², connection type: screwless



Approvals



Request STP/BIM File

Metway Series 166GE 5 pole panel mounting plug (166GEST05) and socket (166GEBU05) connectors provide a simple snap in device for luminaires and other electrical equipment.

They are simply pushed into a preformed slot in the appliance and internal solid or ultrasonically welded stranded conductors are pushed into the screwless terminals at the back.

Use with series 166GF/5 (166GSTF05) pole connectors or pre assembled leads. For prevention of accidental disconnection of connectors use locking slides 166VSE

Part Numbers:

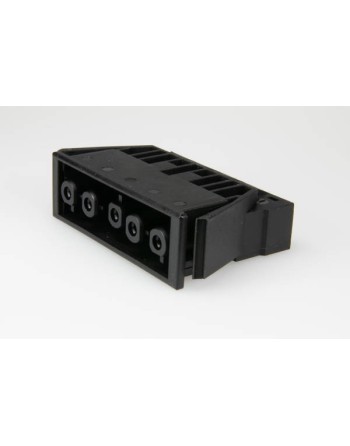

166GEST05 – 5 pole male plug black
166GEBU05 – 5 pole female socket black

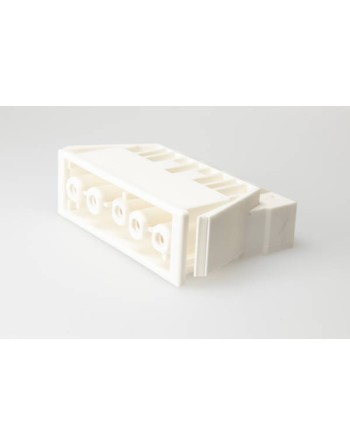

166GESTW05 – 5 pole male plug white

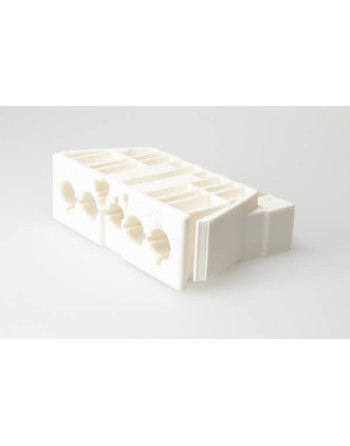

166GEBUW05 – 5 pole female socket white

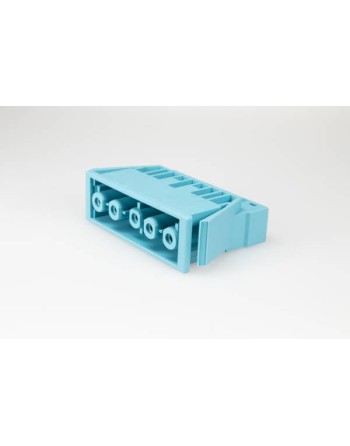

166GEST05PB – 5 pole male plug pastel blue

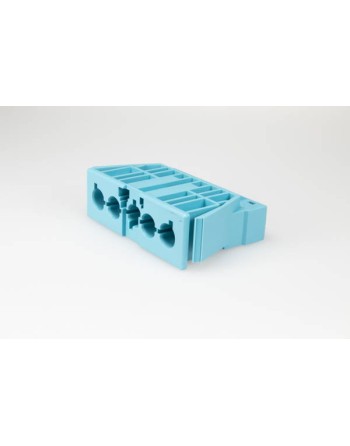

166GEBU05PB – 5 pole female socket pastel blue

Data sheet

Current Rating
20 A
Voltage Rating
250 V
Insulating Material
PA 6.6
Contact Material
Brass
Core Cross-Section min
0.5 mm²
Core Cross-Section max
0.5mm2 – 4.0mm2
Impulse Voltage Rating
4 kV
max. Ambient Temperature Operation
70 °C
IP Code
IP20
IP Code when Plugged
IP40
Approbation VDE
YES
Approbation ENEC
YES
Approbation UL
YES
Approbation CSA
YES
Flammability Rating
V-2

Specific References

Array
