5 pole T piece

- 1 input / 2 outputs.

- T shaped.

5 pole coding:

- 1 (mains).

Voltage rating:

- 250 V.

Current rating:

- 20 A.

Approvals

Request STP/BIM File

5 Pole Moulded Tee Piece – 166GVT05.

The moulded tee distribution unit provides a means of branching off the 5-pole 166G (F) system.

- 1x Input terminal (plug).

- 2x Output terminal (socket).

The moulded tee comes complete with interlocking latching to lock 1x input & 1x output terminal.

Latching of the second output (luminaire connection) is made during installation either by plug or panel mount connector with a locking slide.

When making installations to VDE 0628, connecting elements have to be interlocked.

MARKINGS:

- Black/White: L3 N E L2 L1.

- Pastel Blue: L N E - +

- 166GVT05 - Black.

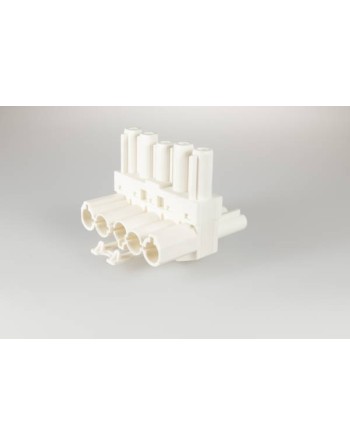

- 166GVTW05 - White.

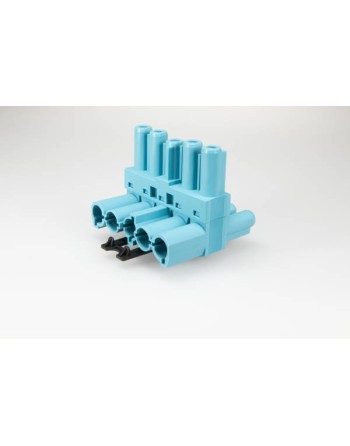

- 166GVT05PB - Pastel Blue.

Reference

Data sheet

Current Rating: 20 A
Voltage Rating: 250 V
Insulating Material: PA
Impulse Voltage Rating: 4 kV
max. Ambient Temperature Operation: 70 °C
IP Code: IP20
IP Code when Plugged: IP40
Approbation ENEC: YES
Approbation UL: YES
Flammability Rating: V-2

Specific References

Download

5 pole T piece data sheet

Download (304.32KB)
