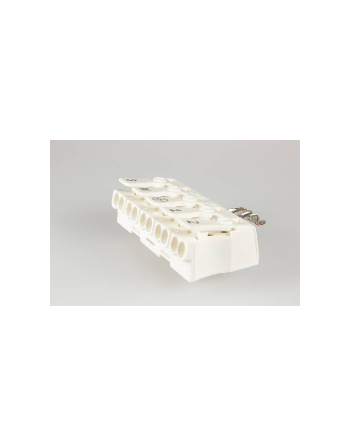

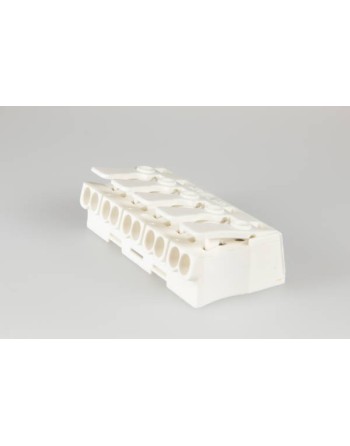

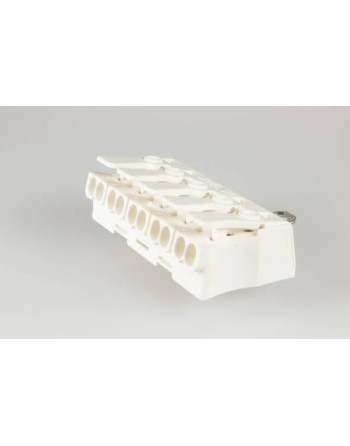

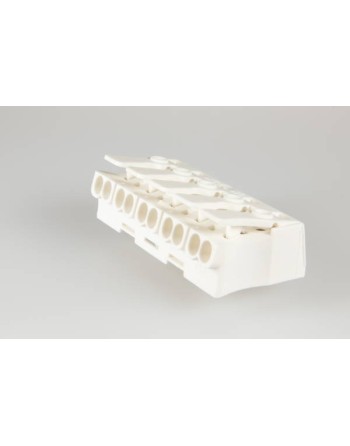

980 Series 5 Pole Screwless T'block
Approvals
Request STP/BIM File
Series 980 16A Terminal Blocks are screwless connectors with 2 ports per pole on each side with the option of screw fixing or catch pin fixing (type RZ).
There is an additional connection for 1 x 0.5mm2 conductor on one side of each pole for internal wiring (eg. interference capacitor).

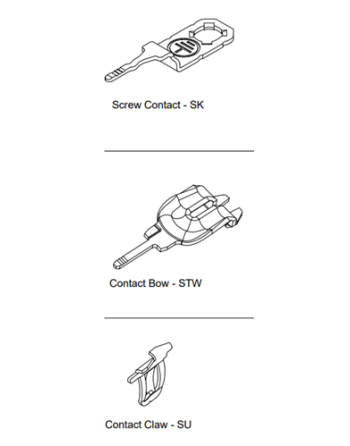

The range has 4 earthing options:
– without earthing tab (leave blank)
– earthing tab screw (type SK)
– earth claw (type SU)
– earthing contact bow (type STW)
The range can also be marked or unmarked.
- For makred (type B at the end of the part number)
9800105
9800105B
9800105SKB
98001RZ05B
98001RZ05SKB
98001RZ05SUB
