164 4 pole panel mounts

Panel Mount, 4 pole

coding: 1 (mains), voltage rating: 250 V, current rating: 16 A

cross-section rating: 2.5 mm², wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm




Approvals



Request STP/BIM File

plug & socket, 4 pole, white, coding: 1 (mains), voltage rating: 250 V, current rating: 16 A, cross-section rating: 2.5 mm², wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm

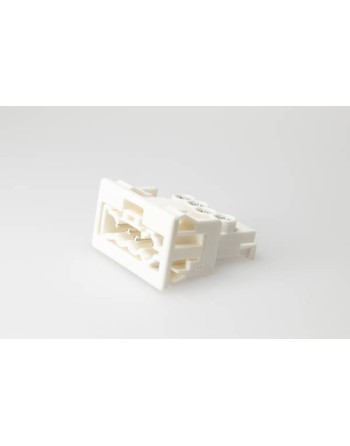

  • 164ESTW04 – 4 pole male plug panel mount white

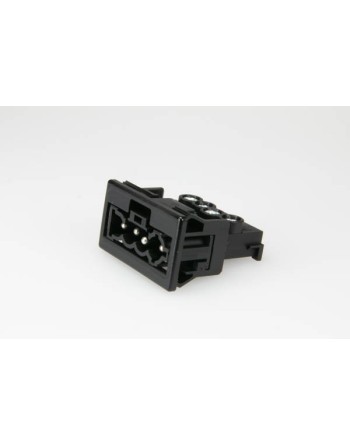

  • 164EST04 — 4 pole male plug panel mount black

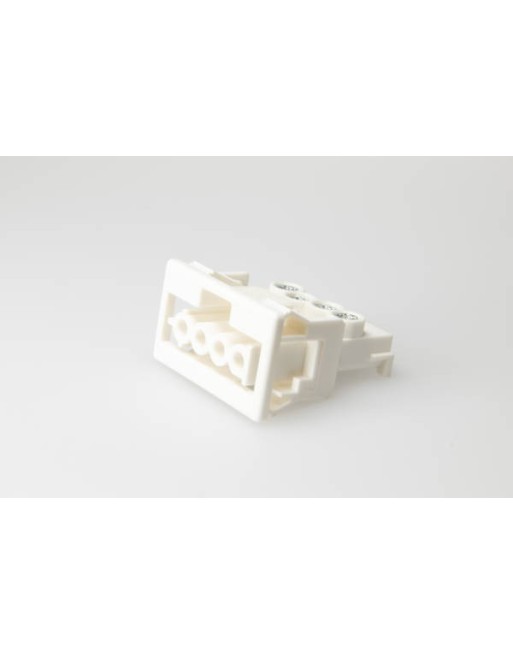

  • 164EBUW04 — 4 pole female socket panel mount white

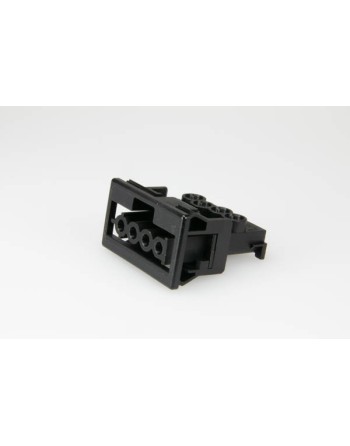

  • 164EBU04 — 4 pole female socket panel mount black

Data sheet

Mouldings
PA black, white
Current Rating
16A
Protection Class
IP20 IP40 when connected
Voltage Rating
240/400V
Inserts
brass, tinned
Temp. limits
max short term: 160o C continuous: 100o C
Conductor size
0.5mm2 – 2.5mm2
Wire stripping length
7mm
Screws
M3, steel, zinc plated, chromed

Specific References

Download

164 4p panel

Download (249.49KB)

164 4p panel

Download (249.49KB)

164 Range DoC

Download (144.56KB)
