164 2 pole panel mounts

Panel mount, 2 pole

coding: 1 (mains), voltage rating: 250 V, current rating: 16 A,

cross-section rating: 2.5 mm², wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm

Approvals

Request STP/BIM File

plug & socket, 2 pole coding: 1 (mains), voltage rating: 250 V, current rating: 16 A, cross-section rating: 2.5 mm², wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm

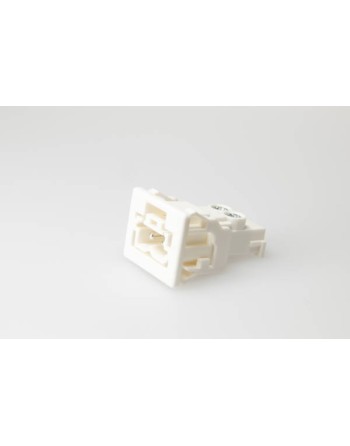

164ESTW02 – 2 pole male plug panel mount white

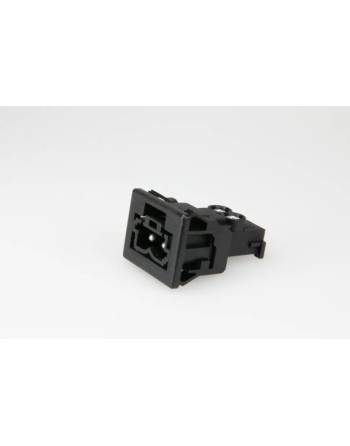

164EST02 — 2 pole male plug panel mount black

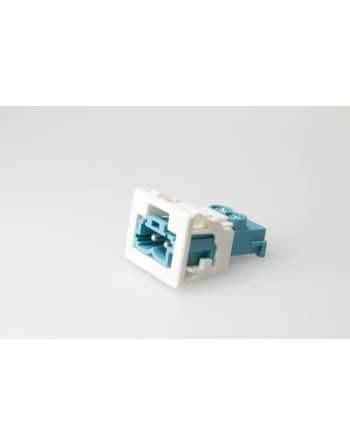

164ESTW02PB – 2 pole male plug panel mount white & pastel blue

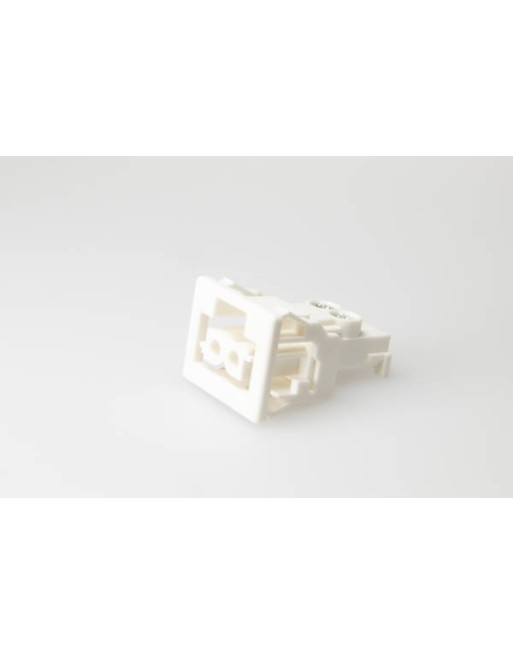

164EBUW02 — 2 pole female socket panel mount white

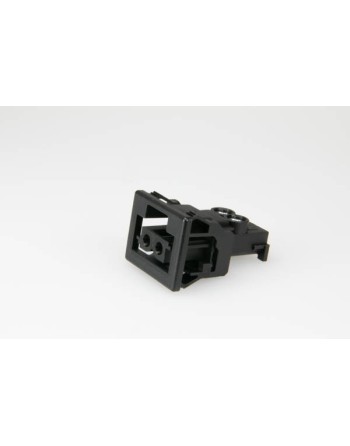

164EBU02 — 2 pole female socket panel mount black

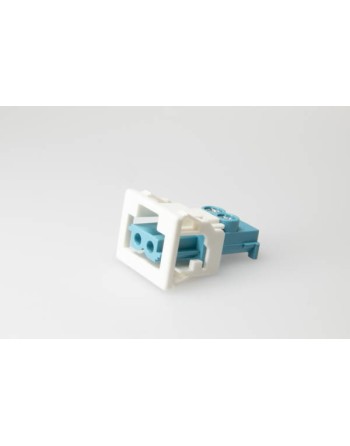

164EBUW02PB — 2 pole female socket panel mount white & pastel blue

Reference

Data sheet

Mouldings: PA black, white, blue
Current Rating: 16A
Protection Class: IP20 IP40 when connected
Voltage Rating: 240/400V
Inserts: brass, tinned
Temp. limits: max short term: 160o C continuous: 100o C
Conductor size: 0.5mm2 – 2.5mm2
Wire stripping length: 7mm
Screws: M3, steel, zinc plated, chromed

Specific References

Download

164 2p panel datasheet

Download (330.42KB)

164 Range DoC

Download (144.56KB)
