166 Classic Tall 5 Pole
5 Pole, coding: 1 (mains),
voltage rating: 250 V, current rating: 16 A,
cross-section rating: 2.5 mm², connection type: screw
Approvals
Request STP/BIM File
Metway Series 166ST-BU plug and socket connectors are primarily intended for use with lighting equipment where secure connections and quick release for servicing are essential.
They are available in 2-5 pole lengths in black or white and are compatible for use with the double pole version 166STD/BUD .
3-5 pole versions have an extended earth plug fitted as standard.
All types are fully “touchproof” in both fitted and unfitted positions.
|
COLOUR |
BLACK |
WHITE |
|

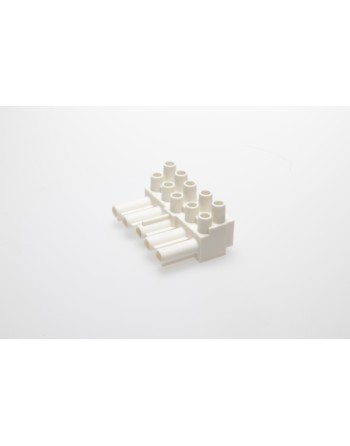

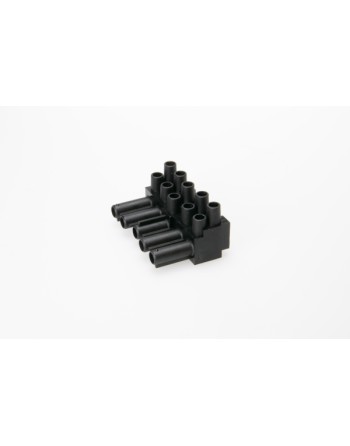

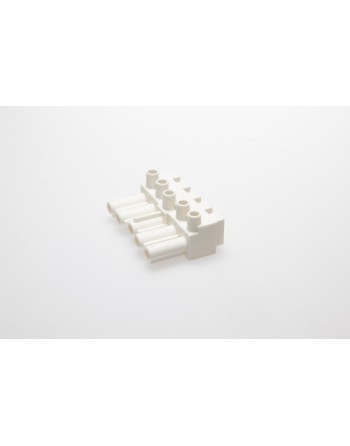

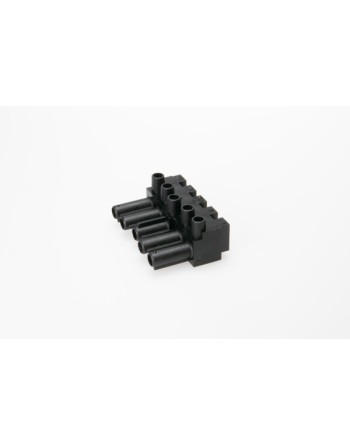

PLUG |
166ST05 / 166STD05 |
166STW05 / 166STDW05 |
|

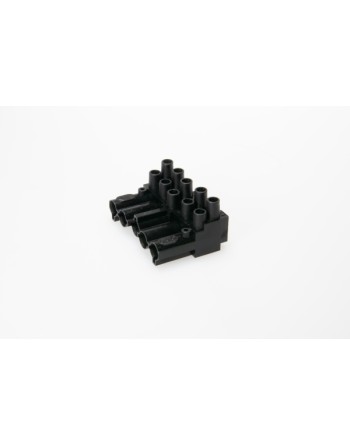

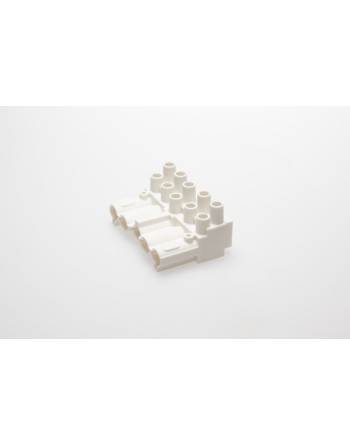

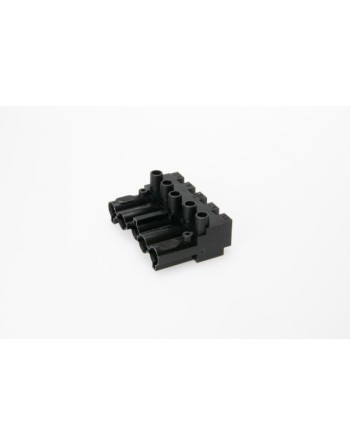

SOCKET |
166BU05 / 166BUD05 |
166BUW05 / 166BUDW05 |
|

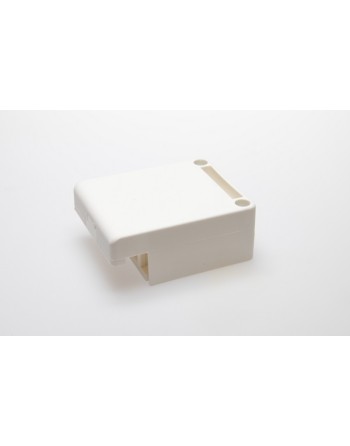

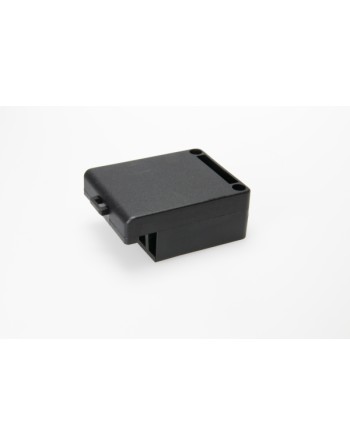

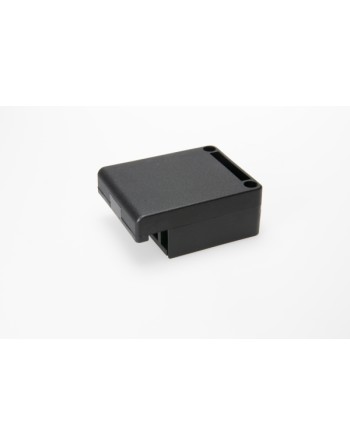

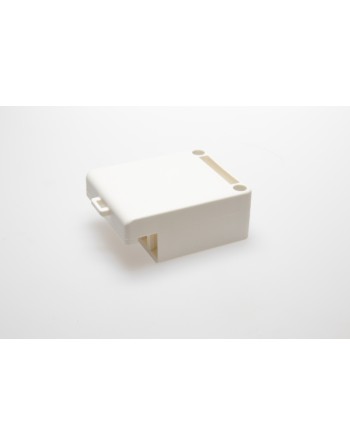

COVER AND BASE PLATE (non-latching) |
166ZELNL05 |
166ZELNLW05 |
|

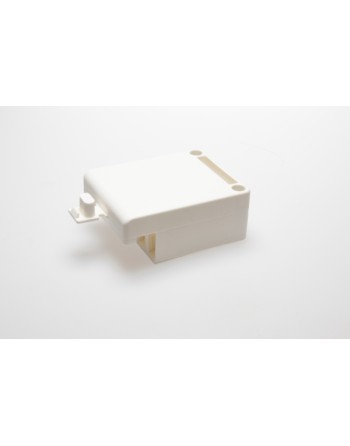

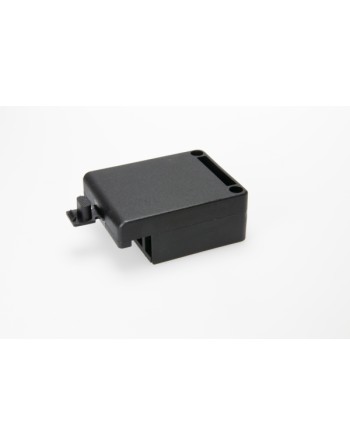

COVER AND BASE PLATE (hook cover) |
166ZELH05 |
166ZELHW05 |
|
COVER AND BASE PLATE (eye cover) |
166ZELO05 |
166ZELOW05 |
Data sheet
- Current Rating
- 16A
- Voltage Rating
- 250 V
- Insulating Material
- PA 6.6
- Contact Material
- Brass
- Core Cross-Section min
- 0.5 mm2
- Core Cross-Section max
- 2.5 mm2
- Impulse Voltage Rating
- V-2
- max. Ambient Temperature Operation
- 70 °C
- IP Code
- IP20
- IP Code when Plugged
- IP40
- Approbation VDE
- Yes
- Approbation ENEC
- Yes
- Approbation UL
- Yes
- Approbation CSA
- Yes
Specific References
Array
5 Pole, coding: 1 (mains),
voltage rating: 250 V, current rating: 16 A,
cross-section rating: 2.5 mm², connection type: screw
