166 Flat 3 Pole
3 Pole
coding: 1 (mains), cable diameter min.: 4.5 mm, cable diameter max.: 5.5 mm
voltage rating: 250 V, current rating: 16 A, cross-section rating: 2.5 mm², connection type: screw
Approvals
Request STP/BIM File
Series 166F plug and socket connectors are primarily intended for use with lighting equipment, where limited access requires the use of low profile mouldings.
They are available in 3 pole lengths.
They have an extended earth plug fitted as standard.
They can be connected and disconnected under load in accordance with VDE 0627.
They come complete with covers and base plates in an unassembled condition.
Part numbers:
166BUFW03 – 3 pole female socket white

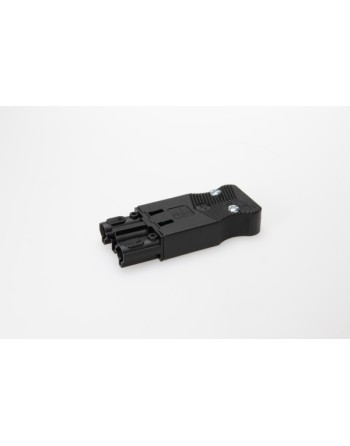

166BUF03 – 3 pole female socket black

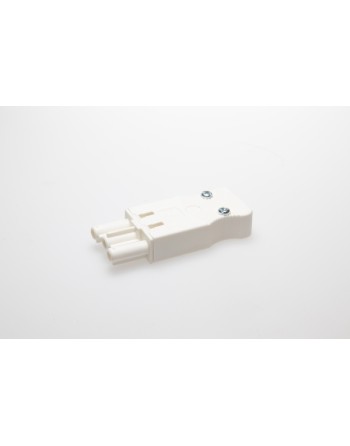

166STFW03 – 3 pole male plug white

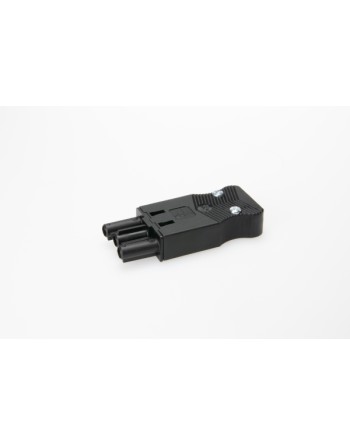

166STF03 – 3 pole male plug black
Data sheet
- Mouldings
- Nylon 6.6 (PA6/6), black, white, grey and coral red
- Protection Class
- IP20 IP40 when connected
- Voltage Rating
- See approvals
- Inserts
- brass, tinned
- Temp. limits
- max short term: 160o C continuous: 100o C
- Conductor size
- 0.5mm2 – 4.0mm2
- Wire stripping length
- 7mm
- Screws
- M3, steel, zinc plated, chromed
Specific References
Array
3 Pole
coding: 1 (mains), cable diameter min.: 4.5 mm, cable diameter max.: 5.5 mm
voltage rating: 250 V, current rating: 16 A, cross-section rating: 2.5 mm², connection type: screw
