329 125A Terminal Block
Screw connection
Approvals
Request STP/BIM File

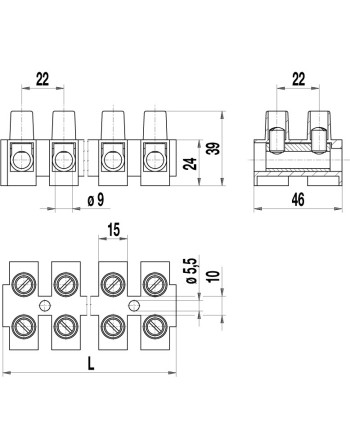

The socket terminal strip 329 is available in 22mm pitch with 1-12 pole design and can be easily stripped to the desired number of poles. This version is well suited for large cross-sections, with a current rating of 125A and a voltage rating of 750V. One fixing hole is located between every pole. The flexible polyamide moulding can even be mounted on curved surfaces.
Data sheet
- Mouldings
- PA, black, UL 94, V-2
- Current Rating
- 125A
- Voltage Rating
- 750V
- Inserts
- Nickel plated brass
- Screw tightening torque
- 3.5 Nm
- Conductor size
- 35 mm²
- Wire stripping length
- 14 mm ± 1 mm
- Screws
- M8; zinc plated steel, blue passivated
- Pitch
- 22mm
- Number of Poles
- 1-12
- Temperature range
- -30°C up to 120°C
