327 (HDS) 76A Terminal Block
Screw connection
Approvals
Request STP/BIM File

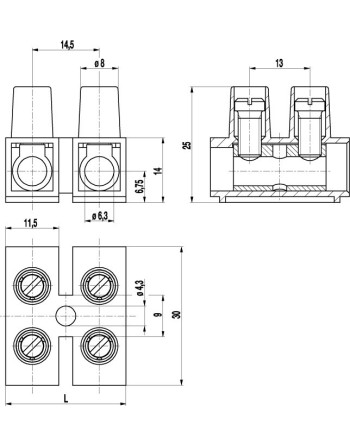

The socket terminal strip 327 is available in 14,5 mm pitch with 1- to 12-pole design and can be easily stripped to the desired number of poles. Due to the M5 screw, the socket hole diameter of 6,3 mm and a creepage distance of more than 9 mm between terminal body and mounting surface, this version is well suited for large cross-sections, high currents and voltages. One fixing hole is located between every two poles. The flexible polyamide moulding can even be mounted on curved surfaces. The wire protector of the “DS”-version reliably prevents damage to multi-wire flexible conductors by the turning screw.
327WE12
327HDS12
Data sheet
- Mouldings
- PA, white, V-0
- Current Rating
- 76A
- Voltage Rating
- 500V
- Inserts
- Nickel plated brass
- Screw tightening torque
- 2 Nm
- Conductor size
- 16 mm²
- Wire stripping length
- 9 mm ± 1 mm
- Screws
- M5; zinc plated steel, blue passivated
- Pitch
- 14.50 mm
- Number of Poles
- 1-12
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (HDS) Stainless steel strip
