950 (DS) Plug Connector
Screw connection
Wire protectors (DS) available
Approvals
Request STP/BIM File

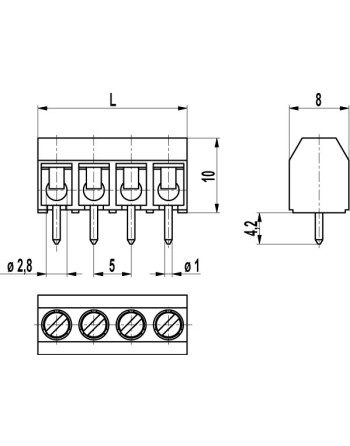

PCB connectors 950 with a pitch of 5 mm are available in 2- to 32-pole design and can be mounted side-by-side without pole loss. Wire protection in DS-design reliably prevents damage to stranded wires by the screw. The screws are secured against self-loosening.
950**DS
Options
Marking: consecutive numbering, lettering or special printing available. Upon request
Data sheet
- Mouldings
- PA, grey, V-0
- Current Rating
- 17.5A
- Voltage Rating
- 300V
- Screw tightening torque
- 0.4 Nm
- Conductor size
- 1.5mm2
- Wire stripping length
- 6 mm ± 0.5 mm
- Screws
- M2.6; zinc plated steel, blue passivated
- Pin spacing
- 5mm
- Number of Poles
- 2-32
- Tracking distance
- CTI Over 100
- Recommended hole dia. in p.c. board:
- 1.3 mm
- Temperature range
- -40°C up to 100°C
- Wire protectors
- (DS) Tin plated tin bronze
