DFG-1-E-AX / DFG-2-E-AX / DFG-3-E-AX / DFG-5-E-AX
DFG-1-E-AX / DFG-2-E-AX / DFG-3-E-AX / DFG-5-E-AX

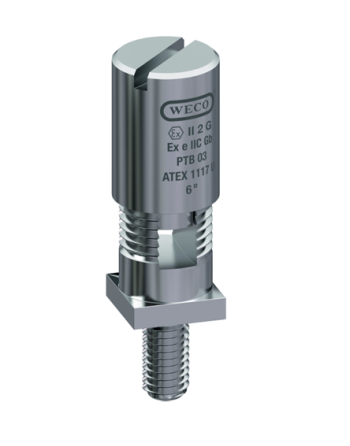

Secured mantle terminals with ATEX approval
with flat, spring-loaded clamping mechanism, reverse lock and threaded pin, for single conductor
Approvals
Request STP/BIM File
DFG-1-E-AX / DFG-2-E-AX / DFG-3-E-AX / DFG-5-E-AX
Secured mantle terminals with ATEX approval
with flat, spring-loaded clamping mechanism, reverse lock and threaded pin, for single conductor

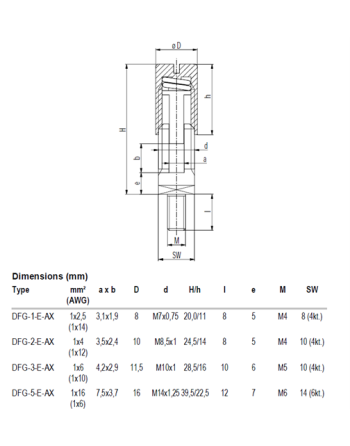

Data sheet
- Material
- Nickel Plated Brass
- Current Rating
- 30 - 95A
- Core Cross-Section min
- 0.14mm2
- Core Cross-Section max
- 25mm2
- Temp. limits
- -20°c -130°C
Specific References
Array
DFG-1-E-AX / DFG-2-E-AX / DFG-3-E-AX / DFG-5-E-AX
Secured mantle terminals with ATEX approval
with flat, spring-loaded clamping mechanism, reverse lock and threaded pin, for single conductor
