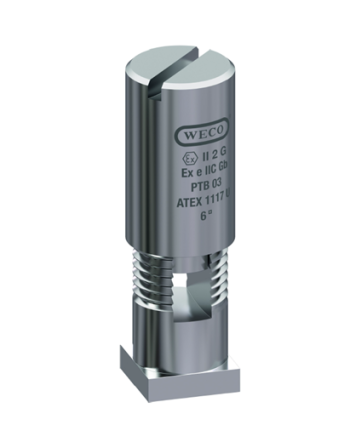

DFB-1-AX / DFB-2-AX / DFB-3-AX / DFB-5-AX

DFB-1-AX / DFB-2-AX / DFB-3-AX / DFB-5-AX

Secured mantle terminals with ATEX approval

with flat, spring-loaded clamping mechanism, reverse lock and threaded base



Approvals



Request STP/BIM File

DFB-1-AX / DFB-2-AX / DFB-3-AX / DFB-5-AX

Secured mantle terminals with ATEX approval

with flat, spring-loaded clamping mechanism, reverse lock and threaded base

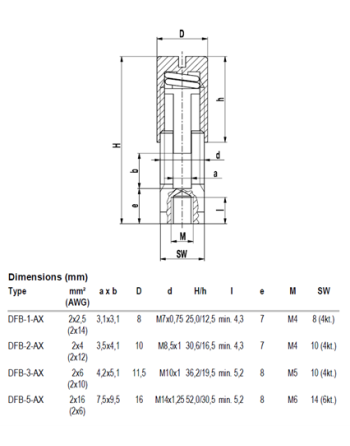

Data sheet

Material
Nickel Plated Brass
Current Rating
30 - 95A
Core Cross-Section min
0.14mm2
Core Cross-Section max
2*25mm2
Temp. limits
-20°c -130°C

Specific References

Download

dfb ax datasheet

Download (3.92MB)
