166G Flat 4 Pole

Series 166G flat series plug and socket connectors are primarily intended for use with lighting equipment where secure connections and quick release for servicing are essential.

Approvals

Request STP/BIM File

Metway Series 166GF 4 pole low profile rewireable plug and socket connectors comply with EN60 320 and are primarily intended for use with lighting equipment where limited access requires the use of low profile mouldings and where secure connections and quick release for servicing are essential.

They are available in 4 pole lengths and have an extended earth plug fitted as standard.

They are fully “touchproof” in both fitted and unfitted positions.

Each pole is polarised to prevent incorrect alignment.

166GBUF04 — 4 pole female socket black

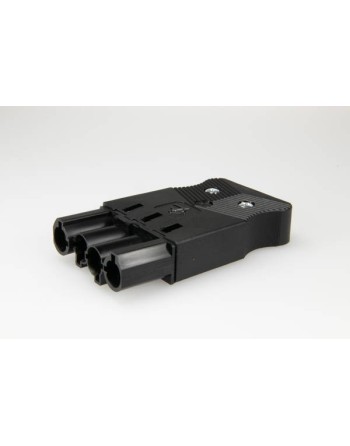

166GSTF04 — 4 pole male plug black

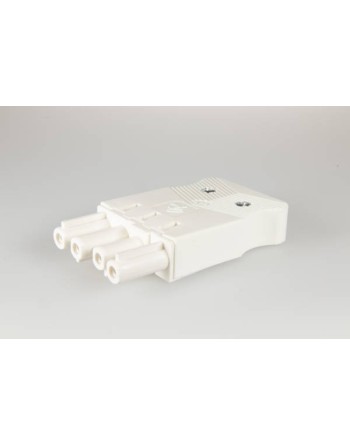

166GBUFW04 — 4 pole female socket white

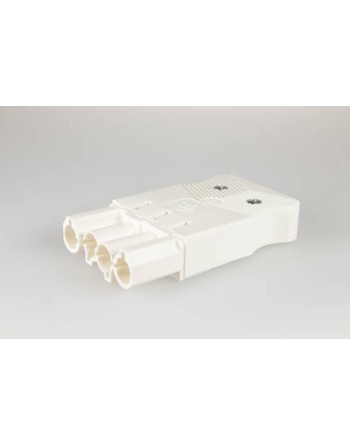

166GSTFW04 – 4 pole male plug white

Reference

Data sheet

Current Rating: 20 A
Insulating Material: PA 6.6
Contact Material: Brass
Core Cross-Section min: 0.5 mm2
Core Cross-Section max: 2.5 mm2
Impulse Voltage Rating: 4 kV
max. Ambient Temperature Operation: 70 °C
IP Code: IP20
IP Code when Plugged: IP40
Approbation VDE: YES
Approbation ENEC: YES
Approbation UL: YES
Approbation CSA: YES
Flammability Rating: V-2

Specific References

Download

166G Flat 4 Pole Datasheet

Download (376.29KB)
