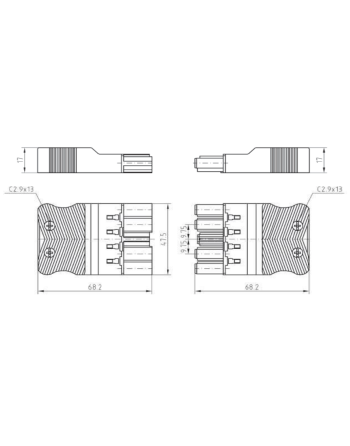

166G Flat 5 Pole

Series 166G flat 5 pole plug and socket connectors comply with EN 60 320 and are primarily intended for use with lighting equipment including digital dimming or three phase supply, where limited access requires the use of low profile mouldings.

Approvals

Request STP/BIM File

Series 166GF 5 pole plug and socket connectors comply with EN 60 320 and are primarily intended for use with lighting equipment including digital dimming or three phase supply, where limited access requires the use of low profile mouldings.

They have an extended earth plug fitted as standard and can be connected and disconnected under load in accordance with VDE 0627.

They are fully “touchproof” in both fitted and unfitted positions.

They come complete with covers and base plates in an unassembled condition.

MARKINGS

Black/White: L3 N E L2 L1

Pastel Blue: L N E - +

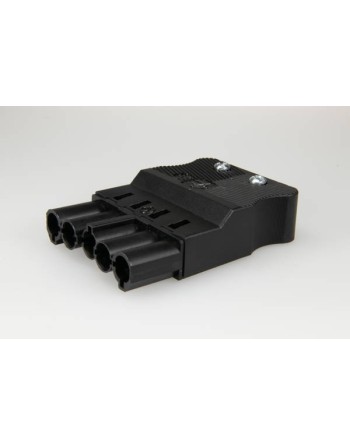

166GBUF05 — 5 pole socket black
166GSTF05 — 5 pole plug black

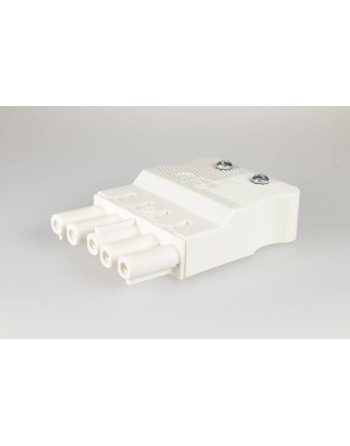

166GBUFW05 — 5 pole socket white

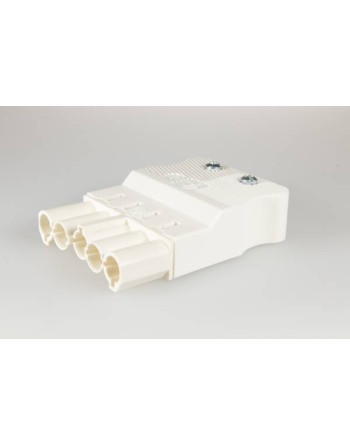

166GSTFW05 – 5 pole plug white

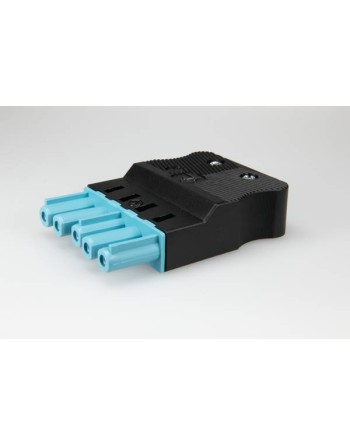

166GBUF05PB — 5 pole socket pastel blue

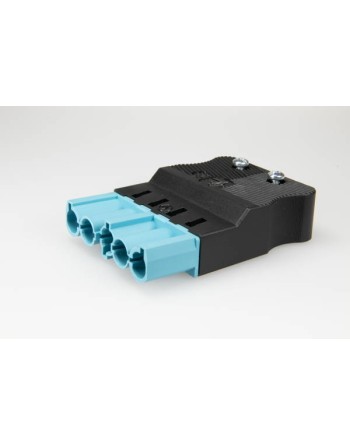

166GSTF05PB — 5 pole plug pastel blue

Reference

Data sheet

Current Rating: 20 A
Voltage Rating: 250 V
Insulating Material: PA 6.6
Contact Material: Brass
Core Cross-Section min: 0.5 mm2
Core Cross-Section max: 2.5 mm2
Impulse Voltage Rating: 4 kV
max. Ambient Temperature Operation: 70 °C
IP Code: IP20
IP Code when Plugged: IP40
Approbation VDE: YES
Approbation ENEC: YES
Approbation UL: YES
Approbation CSA: YES
Flammability Rating: V-2

Specific References

Download

166G Flat 5 Pole Datasheet

Download (387.36KB)

Array
