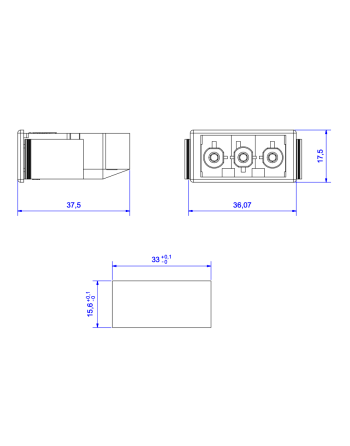

Panel Mount 3 pole
Panel mount, 3 pole, coding: 1 (mains), wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm, voltage rating: 250 V, current rating: 20.0 A, cross-section rating: 2.5 mm², connection type: screwless
Approvals
Request STP/BIM File
Series 166E panel mount plug and socket connectors are primarily intended for use with lighting equipment, appliances and other housings where secure connections and quick release for servicing are essential.
They are designed to simply push in to panels which have preformed rectangular slots.
They are available in 3 pole lengths and have an extended earth plug fitted as standard.
They are fully “touchproof” in both fitted and unfitted positions.
Each pole is polarised to prevent incorrect alignment. The internal connections are for use as screwless connectors, suitable for tinned stranded or solid conductors.
Untinned stranded conductors cannot be used with this type.
Part numbers:

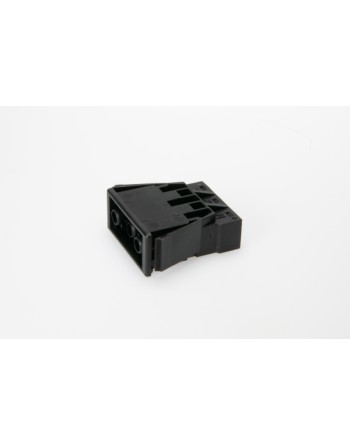

166ESTW03 – 3 pole male panel mount plug white

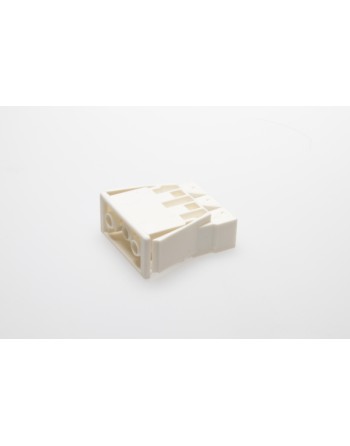

166EBUW03 – 3 pole female panel mount socket white
166EST03 – 3 pole male panel mount plug black

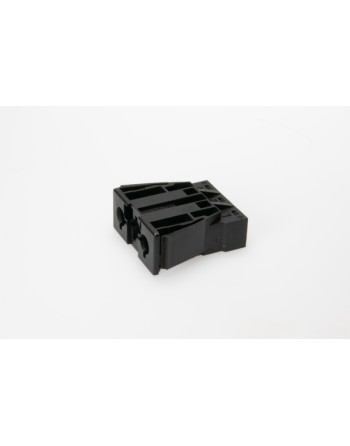

166EBU03 – 3 pole female panel mount socket black
Data sheet
- Current Rating
- 20 A
- Voltage Rating
- 250 V
- Insulating Material
- PA 6.6
- Contact Material
- Brass
- Core Cross-Section min
- 0.5 mm²
- Core Cross-Section max
- 0.5mm2 – 4.0mm2
- Impulse Voltage Rating
- 4 kV
- max. Ambient Temperature Operation
- 70 °C
- IP Code
- IP20
- IP Code when Plugged
- IP40
- Approbation VDE
- YES
- Approbation ENEC
- YES
- Approbation UL
- YES
- Approbation CSA
- YES
- Flammability Rating
- V-2
