Panel Mount 4 pole

panel, 4 pole, coding: 1 (mains), wall thickness min.: 0.5 mm, wall thickness max.: 1.2 mm, voltage rating: 400 V, current rating: 20.0 A, cross-section rating: 2.5 mm², connection type: screwless



Approvals



Request STP/BIM File

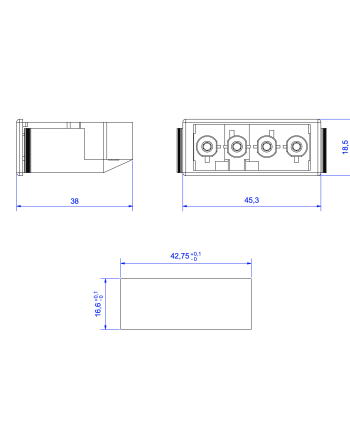

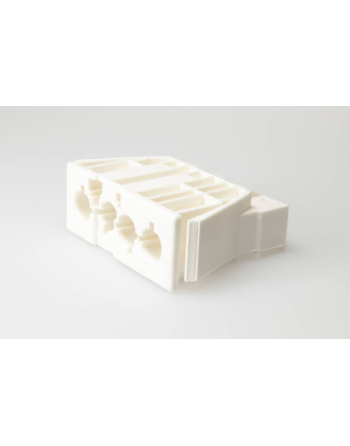

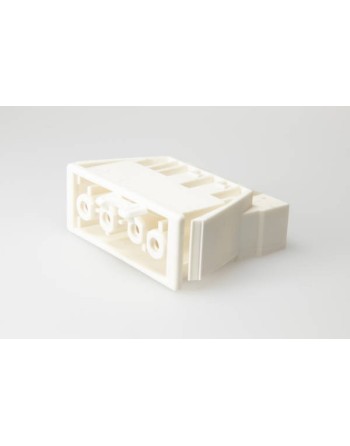

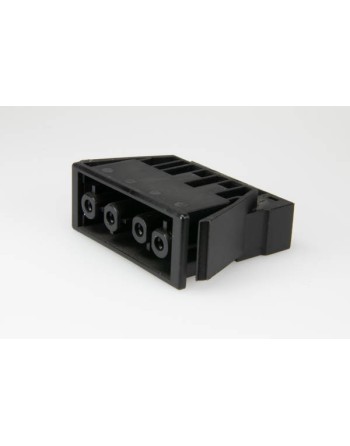

  • Series 166GE 4 pole panel mount plug and socket connectors provide a simple snap in device for emergency type luminaires and other electrical equipment where daisy chaining of fittings is required.

    They are simply pushed into a preformed slot in the appliance and internal solid or ultrasonically welded stranded conductors are pushed into the screwless terminals at the back.

    Use with series 166GF/4 pole connectors or pre assembled leads. For prevention of accidental disconnection of connectors use locking slides 166VSE

    Part Numbers:

    166GEST04 – 4 pole male plug black
    166GEBU04 – 4 pole female socket black

    166GESTW04 – 4 pole male plug white
    166GEBUW04 – 4 pole female socket white

Data sheet

Current Rating
20 A
Voltage Rating
250 V
Insulating Material
PA 6.6
Contact Material
Brass
Core Cross-Section min
0.5 mm²
Core Cross-Section max
0.5mm2 – 4.0mm2
Impulse Voltage Rating
4 kV
max. Ambient Temperature Operation
70 °C
IP Code
IP20
IP Code when Plugged
IP40
Approbation VDE
YES
Approbation ENEC
YES
Approbation UL
YES
Approbation CSA
YES
Flammability Rating
V-2

Specific References

Download

Panelmount 4 Pole Datasheet

Download (287.66KB)
