230 24A Terminal Blocks - Compact Style
Series 230 24A Terminal Blocks - Compact Style
Also available in a raised profile
Approvals
Request STP/BIM File
Series 230 terminal blocks provide a 10 amp current rating within a shorter length housing.

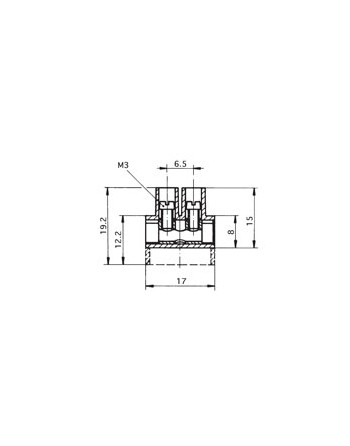

Series 230 terminal blocks incorporate M3 screws which will meet the requirements of British Standards for equipment designated 10 amp nominal rating.

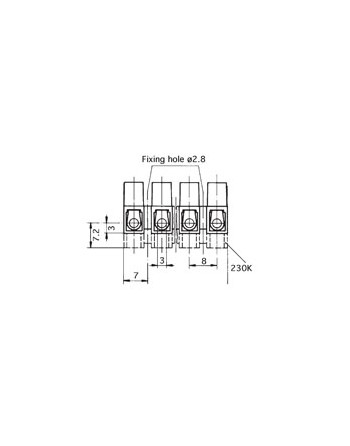

They are available in standard height and raised base (suffixed K) which are suitable for applications where creepage and clearance distances must be observed. Drawings for the K version can be supplied upon request.
They are available in two grades of material, nylon 6 or nylon 6.6 which is suitable for high temperature applications.
Supplied with or without wire protectors, with captive screws fitted as standard.
23012
230HDS12
230KHDS12
Data sheet
- Material
- polyamide 6 V2
- Continuous Working Temp
- 85°C
- Current Rating
- 24A
- Voltage Rating
- 450v
- Contact Material
- Brass
- Core Cross-Section min
- 0.5mm2
- Core Cross-Section max
- 2.5mm2
- Approbation VDE
- yes
- Approbation ENEC
- yes
- Approbation UL
- yes
- Approbation CSA
- yes
- Wire stripping length
- 5.0-5.5mm
- Pitch
- 8mm
- Number of Poles
- 2-12 pole
