TH.405 Techno TEEPLUG

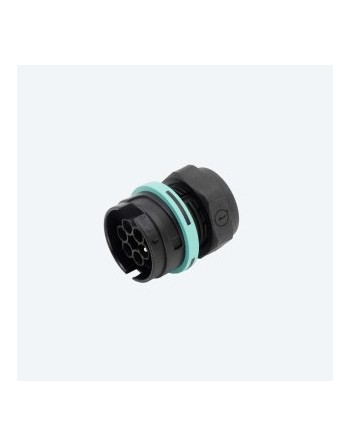

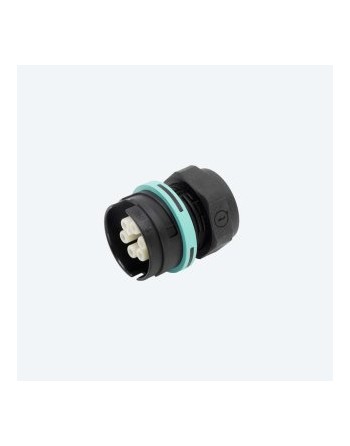

Techno TEEPLUG ® TH405 IP68 Plug and Socket Connector



Approvals



Request STP/BIM File

Techno TEEPLUG ® TH405 Plug and Socket Connector allow the installation of electrical equipment to a high protection class, watertight in depths up to 5 m (5 m/1 h) The IP68 connection is made quickly and safely without the use of cast resin, gel or heat shrink tube. The TH405 additionally impresses by its robust design and easy handling.

  • Compact design
  • 2 to 6 pole as screw or crimp version
  • Cable diameter size 7 – 13.5 mm

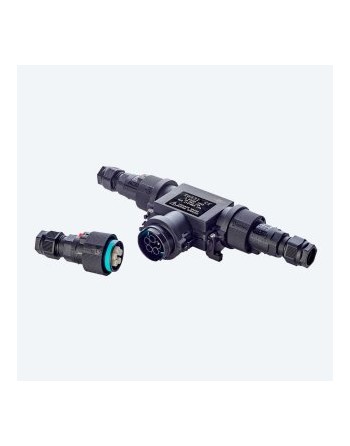

  • TR28 and T distributor (IP65) built-in variants
  • Exchangeable plugs and sockets (modular system)
  • Clean and easy IP68 connection without the use of cast rasin, gel or heat shrink tubing
  • Captive gaskets (two components)
  • Safe connection of conductors with barrier in the insert (“pocket hole”)

Data sheet

IP Rating
IP68 0.5 bar (5 m / 1 h)
Operating Temperature
-40°C to +125°C
Number of Poles
2-6
Cable section
0.5 – 1.5 mm2
Cable diameter min-max
7.0 mm – 14.0 mm

Specific References

Download

techno 405 datasheet

Download (1.65MB)
